Socket Fusion Welding Machine 20-63mm 800W AC220V Digital Control

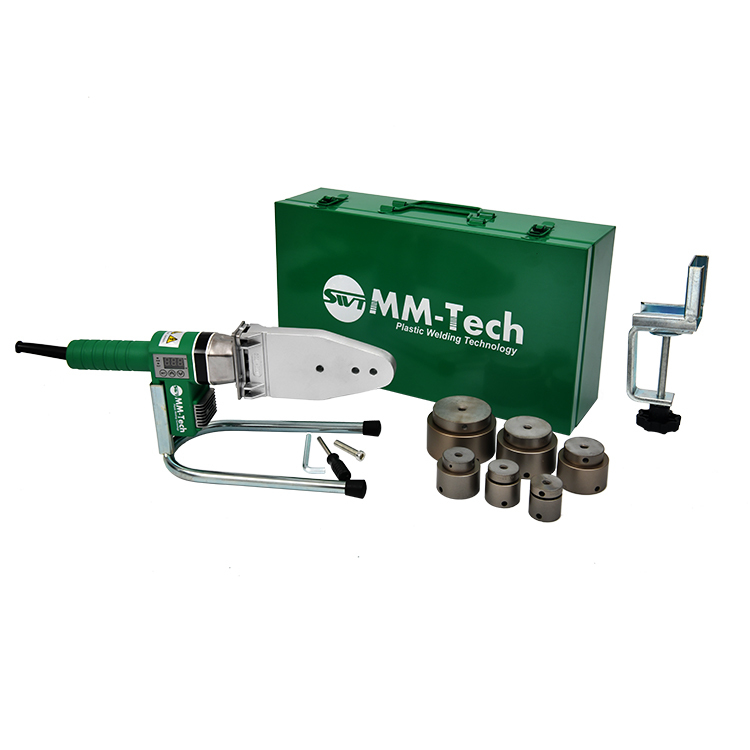

Large Image : Socket Fusion Welding Machine 20-63mm 800W AC220V Digital Control

Product Details:

Place of Origin:	Hebei China
Brand Name:	MM-Tech
Certification:	CE, ISO
Model Number:	ZRJQ-63

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$90 - $120 /set
Packaging Details:	Iron box and cardboard box
Delivery Time:	5 days
Payment Terms:	T/T,Western Union
Supply Ability:	1-20 sets per week

Contact Now

Detailed Product Description

Suitable Material:	PP-R/PE/PB	Carton Size:	460270270(MM)
Model:	ZRJQ-63	Temperature Tolerance:	≤5°C
Rated Voltage:	AC220V, 50/60HZ	Power:	800W
Working Temperature:	260°C	Welding Range:	20-25-32-40-50-63mm
Control System:	Digital Control	Color:	Green
Highlight:	Socket fusion welding machine 20-63mm , Digital control socket fusion welder , 800W AC220V welding machine

Socket Fusion Welding Machine 20-63mm

Key Specifications

Attribute	Value
Suitable Material	PP-R/PE/PB
Model	ZRJQ-63
Rated Voltage	AC220V, 50/60HZ
Power	800W
Working Temperature	260°C
Temperature Tolerance	≤5°C
Welding Range	20-25-32-40-50-63mm
Control System	Digital Control
Carton Size	460270270(MM)

Product Overview

The ZRJQ-63 socket fusion welding machine is designed for PP-R, PE, and PB materials produced under DVS2208-1 standard, with manual operation capability for sizes ranging from 20-63mm.

Technical Specifications

Welding Range (Metric)	20-25-32-40-50-63mm
Net Weight	1.8kgs
Pieces per Carton	2pcs

Product Features

The ZRJQ-63 PPR welding machine combines durability, safety, and ease of use in one reliable tool. Its Teflon heating element and die head offer high-temperature resistance for lasting performance. Compliant with DVS2208-1 standards, it ensures safe, consistent operation.
