Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion

Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion
Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion

Large Image :  Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion

Product Details:
Place of Origin: China
Brand Name: MM-Tech
Certification: CE
Model Number: SWT-NS600B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1500-1700/set
Packaging Details: Aluminium alloy Box
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10 sets / day
Contact Now
Detailed Product Description
Product Name: Extrusion Welder Application: Repair Cracks And Etc
Welding Rod Diameter: 3.0-4.0mm Motor: HITACHI
Welding Thickness: 8-40mm Welding Speed: 2.0kg/h
Warranty: 2 Years Power: 3400w
Color: Green Certification: CE
Highlight:

Double Heating plastic welder gun

,

HDPE plastic welder gun

,

Geomembrane Extrusion plastic welder gun

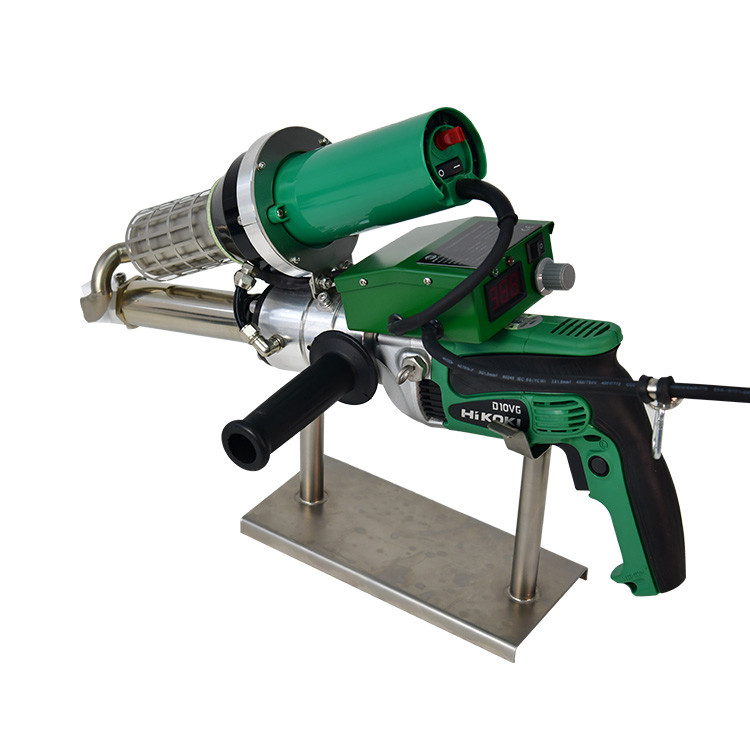

Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion



Extrusion Plastic Welder Description:



This extrusion welding machine is suitable for 3 or 4mm welding rods. It adopts a single-stage heating system and is suitable for difficult welding environments. It can weld PE, PP, PVC and other materials.



Extrusion Welder Specifications:



Heating double heating/welding rod
working voltage 220V 50/60HZ
Temp.deviation in surface(170-250℃) <±5℃
Option Digital Display Heating Plate
Air temp 20-600℃ Adjustable
Extruding Temperature 200-380 ℃ Adjustable
Driving Motor HITACHI METABO
N.Weight 6kg
G.Weight 7kg
Extruding Volume 2kg/h
Hot air power 1.6kw
welding rod heating power 0.8kw
Extruding Motor power 0.8kw

Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion 0
The parts of the complete machine:



Each set includes: machine + fillet welding shoe + overlap welding shoe + heating element + disassembly tools + operation manual + aluminum box + carton



Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion 1

Product Features:

1) Imported hot air welding torch and imported driven system, high temperature, big torque, long
service life, stable performance.

2) Light weight, easy to handle and available to operation at different angles.

3) Big extrusion volume can be welded more than 10mm welding seam.

4) Different welding shoes can be applied to different types of welding.

5) It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding
Association)



Extrusion Welder Application:



Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion 2

Double Heating SWT-NS600B Plastic Welder Gun HDPE Geomembrane Extrusion 3
