CNC 380V Plastic Sheet Welding Machine

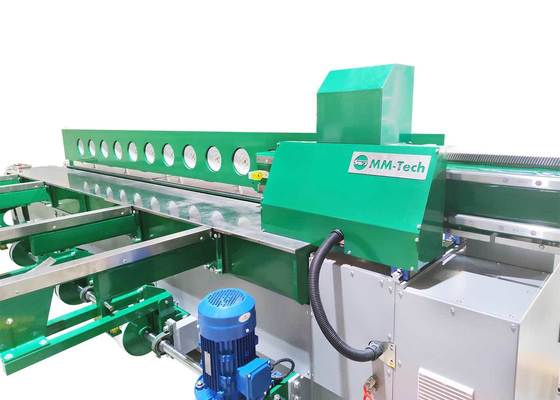

Large Image : CNC 380V Plastic Sheet Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH4000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$12,500-17,700/set
Delivery Time:	Within 7 days
Payment Terms:	L/C, D/A, D/P, Western Union, T/T, PayPal

Contact Now

Detailed Product Description

Model:	SWT-PH4000	Welding Thickness:	3.0-30.0mm
Roll Circle Min Diameter:	450	Rated Voltage:	380V
Frequency:	50/60Hz	Rated Current:	13.6A
Max. Working Length:	4000mm	Air Pressure:	6.0-8.0kg.f / Cm²
Highlight:	380V Plastic Sheet Welding Machine , CNC Plastic Sheet Welding Machine

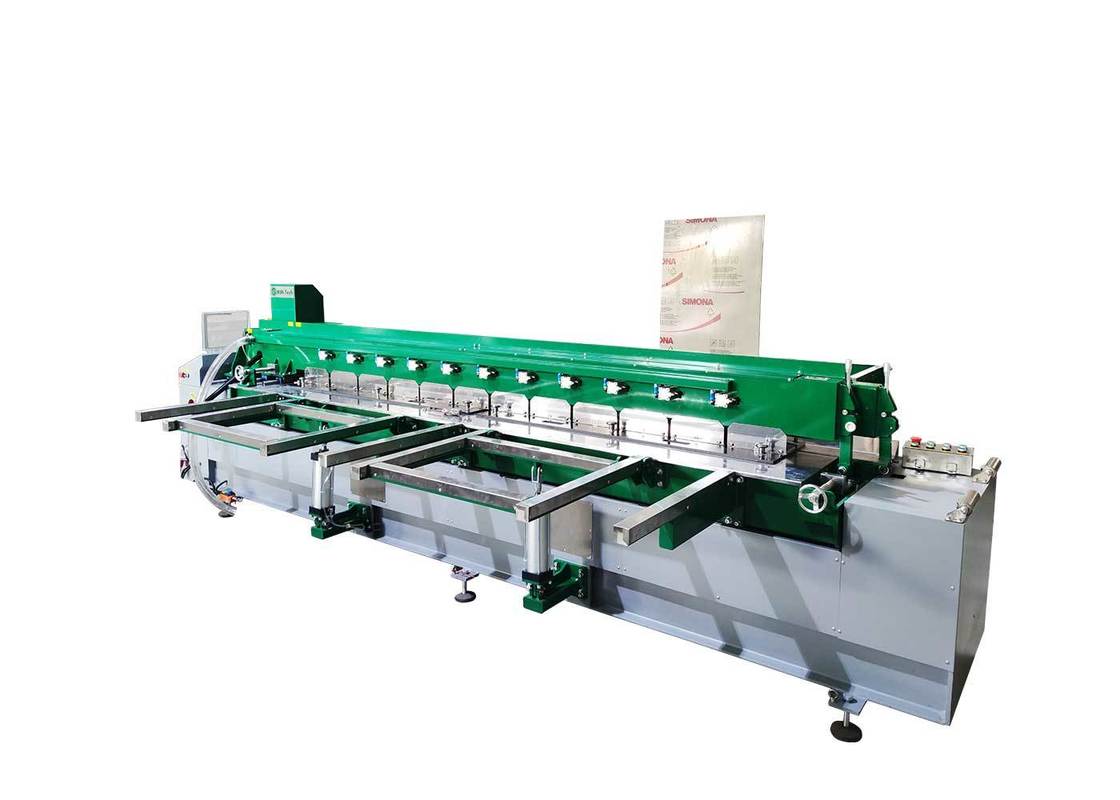

SWT-PH4000 CNC 380V Plastic Sheet Rolling Welding Machine for PP Material

Plastic Sheet Rolling Welding Machine Introduction

The surface of the heating plate is coated with Teflon.
It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.
Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

Plastic Sheet Rolling Welding Machine Technical Data

Model	SWT-PH4000
Welding Thickness(mm)	3.0-30.0
Max. Woking Length(mm)	4000
Roll Circle Min Diameter(mm)	450
Air Pressure(kg.f / cm²)	6.0-8.0
Energy Source(m³ / min)	0.0062
Rated Voltage(V)	380V, 50/60Hz
Rated Current(A)	13.6A
Heating Power(kW)	8kW
Power of Rolling Power(kW)	1.5kW
Heating Mode	Overall Heating
Drum Institutions(parts)	Optional
Machine Size(L×W×H)mm	485012001200
PacKING Size(L×W×H)mm	500013001450
N.W KGS	1550KG
G.W KGS	1700KG

Plastic Sheet Rolling Welding Machine Application

CNC 380V Plastic Sheet Welding Machine 0

Quality Guarantee

24 months. If any parts broken or doesn't work under normal working, we provide them for free.
