220V IPS Inch Manual Hdpe Pipe Welding Machine 50mm-160mm CE approved

Large Image : 220V IPS Inch Manual Hdpe Pipe Welding Machine 50mm-160mm CE approved

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	CE,ISO
Model Number:	SWT-V160/50M

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$500-US$700
Packaging Details:	Plywood Case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Usage:	Welding Pe,Pp,Pvdf,Pvc Pipe	Power:	15.1w
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Condition:	New
Input Voltage:	220V	Total Weight:	48.6kg
Highlight:	Manual Hdpe Pipe Welding Machine , 220V Manual Hdpe Pipe Welding Machine , Hdpe Pipe Welding Machine 50mm

SWT-V160/50M Manual Butt Fusion Machine

DESCRIPTION
SWT-V160M is manual butt fusion welder for pipes up to 160mm.
With compact and portable design,it will enable operators to work in the complicated condition.
The heating plate with digital display help operator reading the temperature in precise and convenient way.
It is suitable for welding plastic pipe and fittings made of HDPE,PP,PVDF.

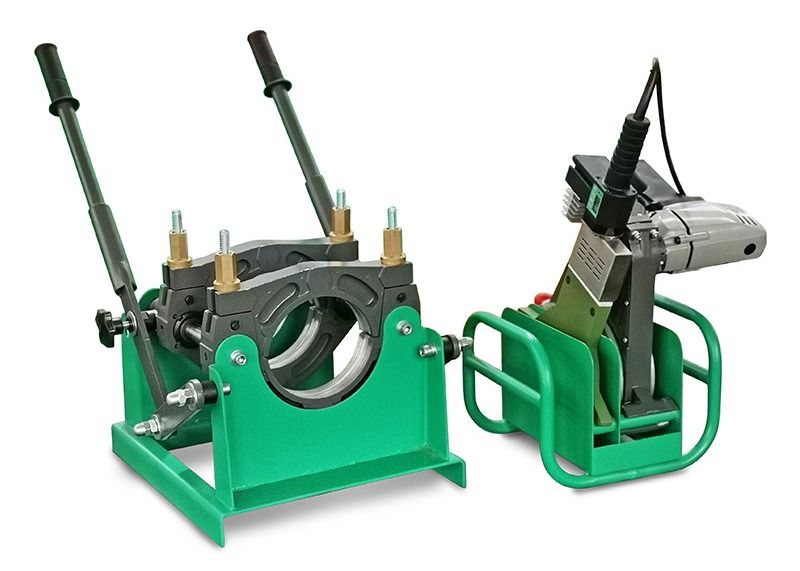

SWT-V160M includes:

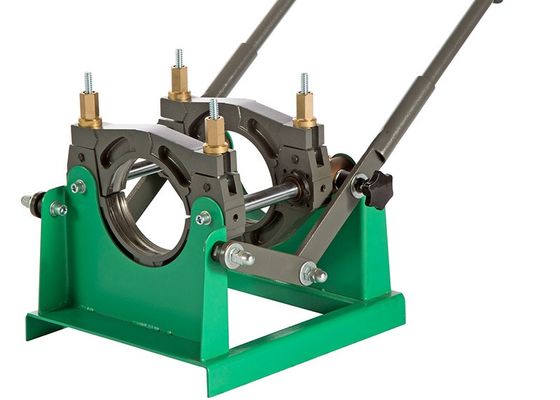

*A machine body with 2 aluminum made clamps;

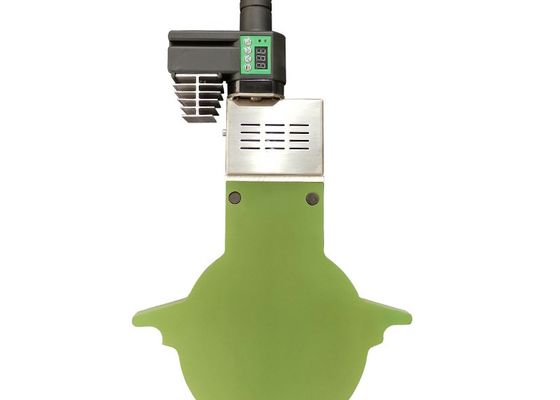

*A Teflon coated heating plate with digital display, equipped with friendly handler;

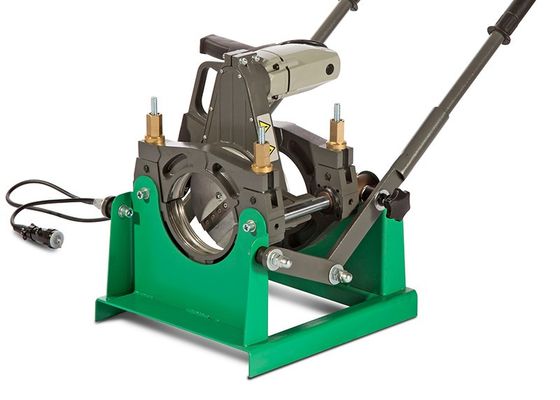

*A electrical milling cutter;
*Support for milling cutter and heating plate.
220V IPS Inch Manual Hdpe Pipe Welding Machine 50mm-160mm CE approved 0
FFEATURES

Welding Range	50mm～160mm
Temperature Range	0℃～270℃
Temperature variable	±5℃
Power of Heating Plate	1.2KW/220V
Power of Planning Tool	1.1KW/220V
Power Supply	220V, 50Hz
Total weight	48.6kg

220V IPS Inch Manual Hdpe Pipe Welding Machine 50mm-160mm CE approved 1

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.
Any parts broken or does not work under normal operating,we are free to provide.
