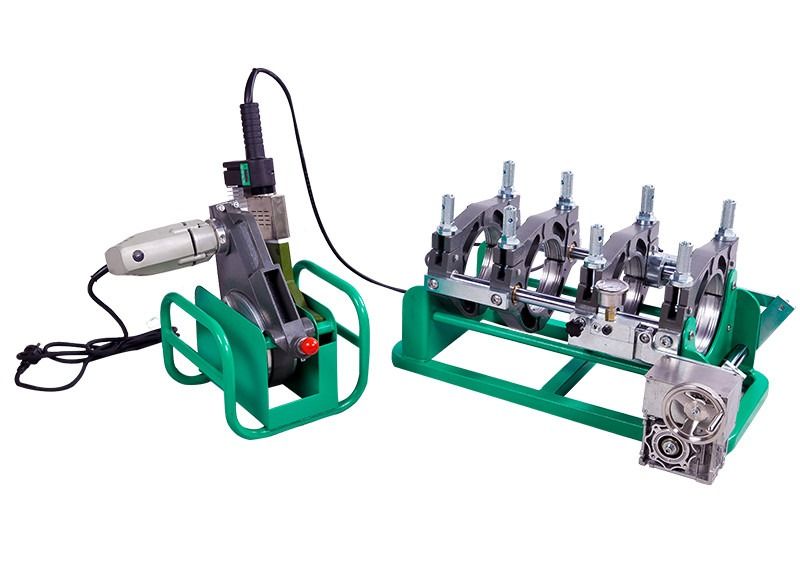

Low Starting Pressure Poly Welding Machine , Manual Pipe Joint Machine 50mm 160mm

Large Image : Low Starting Pressure Poly Welding Machine , Manual Pipe Joint Machine 50mm 160mm

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	CE,ISO
Model Number:	SWT-V160/50M

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$600-US$900
Packaging Details:	Plywood Case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Usage:	Welding Pe,Pp,Pvdf,Pvc Pipe	Power:	2.3w
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Condition:	New
Input Voltage:	220V	Gross Weight:	74 Kgs
Highlight:	Low Starting Pressure Poly Welding Machine , Pipe Joint Machine 50mm , Pipe Joint Machine 74 kgs

Dvs2207 SWT-V160 / 50MS Polyethylene Pipe Butt Fusion Joint Machine For 50 - 160mm Hdpe Pp Pvdf Pipes

Application and Features

1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite
or workshop.

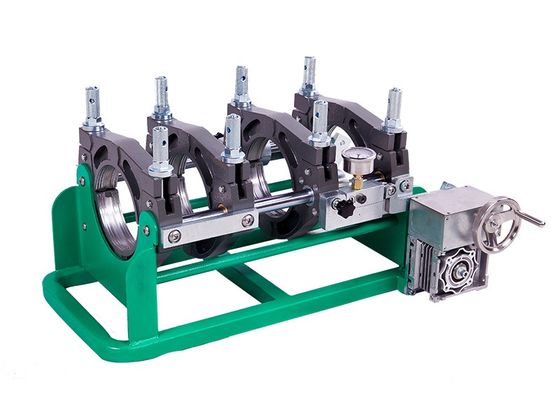

2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating
plate, and optional parts.

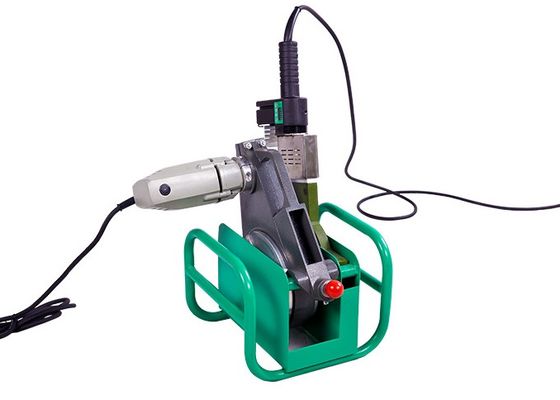

3. Removable PTFE coated heating plate with high accurate temperature control system;

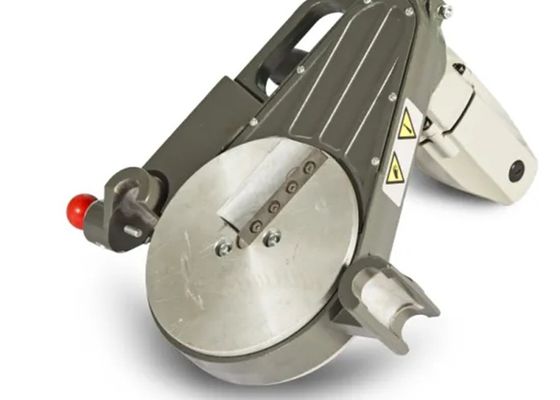

4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.
Optional parts:
1. Tube end device for short flange.
2. Data logger.

Low Starting Pressure Poly Welding Machine , Manual Pipe Joint Machine 50mm 160mm 0

Technical Parameters	SWT-V160/50MS
Welding Range O.D.	50,63-75-90-110-125-140-160 mm
Power Supply	(110V*) 220V, 50/60Hz
Rated Power	1.8 kw
Temperature Range	Max. 300ºC
Packing dimension	450480420 mm
Packing dimension	380420570 mm
Gross Weight	74 kgs

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty 24months.
Any parts broken or does not work under normal operating,we are free to provide.
