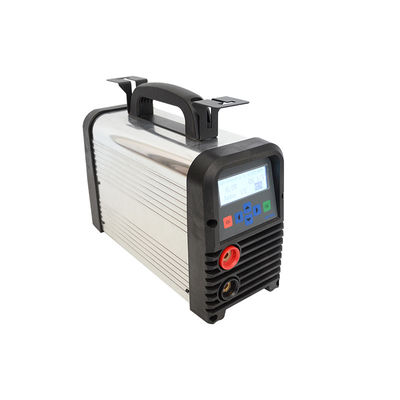

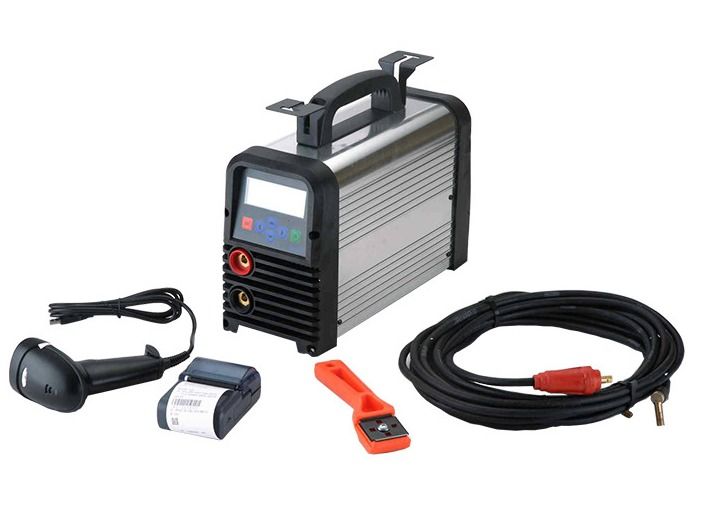

CE DPS20-2.2KW Electrofusion Welding Machines For Polyethylene Pipes

DPS20-2.2KW Electrofusion Welding Machine for Hdpe Gas Pipe And Water Pipes Polyethylene Pipes

Electrofusion welding machine includes 2.2KW, 3.5KW,8KW,12KW,15KW,22KW.

3.5Kw electro fusion welding machine can provide with maximun 48V welding voltage on the constant voltage control mode,

8Kw electro fusion welding machine provides with maximum 130V.The 12Kw provide with up to 170V,which is used to welding compound pipes.

Electrofusion welding machine is the special connecting device used to electro fusion connect polythene pressure and no perssure conduit.

All the characteristics of this electrofusion welding machine have achieved international standard ISO12176-2,and even higher,

it is the perfect corollary equipement for every pe pipe manufactures and construction units.

Specifications:

Features
1.Advanced MCU as control unit, with abundant parameter settings, detection and perfect protection,
2. Fast response to sudden power change (500 ~ 800ms), excellent stability,
3.Wide voltage Input: AC170V - 270V, adapt to site grid,
4.High brightness LCD display, Chinese or English operation, user-friendly HMI,
5.Output voltage / current / heat, past welding time / remaining time, welding status,browser on any input data,
6.Suppression of harmonic output,
7.Protection of cable moving parts with flexible connection,
8.IP rating 54, guaranteed normal use in harsh environment.

WARRANTY
Machine Quality Guarantee : 24 months.
If any parts broken or does not work under normal operating, we are free to provide.
