ISO Certificate Fitting Fabrication Equipment 380V SWT-MA1000/630

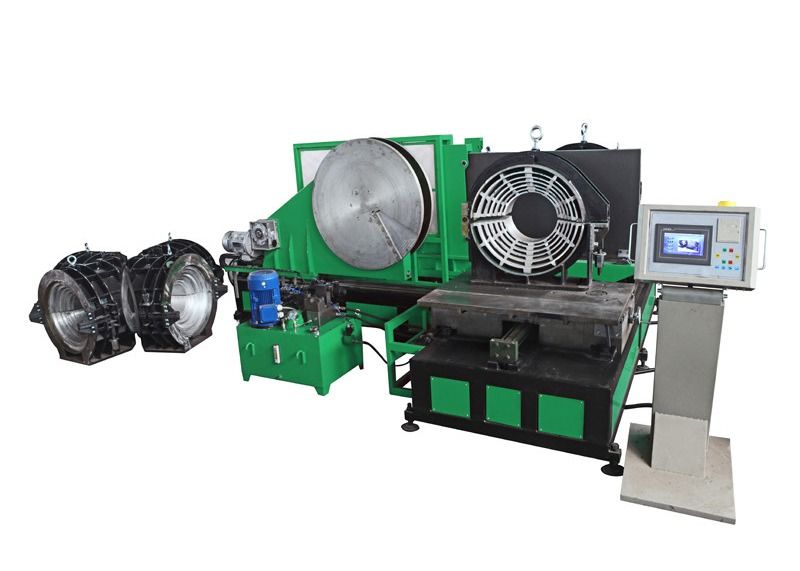

Plastic pipe fitting fusion welding machine SWT-MA1000/630

Features

Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°)fittingsof PE PP PVDF in workshop;

Integrated structure. Nothing remains but to choose the differentspecial clamps while fabricating different fittings;

High accuracy temperature controller;

Difference in heating plate surface temperature ≤±5°;

Environment temperature:-10° ～ 45°;

Electronic count-down timer for heating and cooling time;PLC control system.

Removable PTFE coated heating plate.

Electric planing tool with safety limit switch.

Low starting pressure and high reliable seal structure.

Separate two-channel timer records time in soaking and cooling phases with alert.

High and accurate and shockproof pressure meter indicates clearer readings.

Digital pressure meter is installed on machines.

Reliable performance, easy control.

Optional parts: 45°, 60°Y Tee clamp.

Specifications

Ranges of tee:630mm-1000mm

Ranges of cross: 630mm-1000mm

Ranges of elbow(n×1°):630mm-1000mm

(630mm-710mm-800mm-900mm-1000mm)

Ranges of application: PE,PP and PVDF.

Working voltage:380V ±10%,50/60Hz

Total power:71.5KW, including:

Planing tool motor:4 KW,

Heating plate:60KW,

Hydraulic unit motor:7.5KW

Working voltage: 415V ±10%,50/60Hz

Total power:85.4kW, including:

Planing tool motor:4 KW,

Heating plate:73.9KW,

Hydraulic unit motor:7.5KW

Whole machine consists of five parts:

Basic frame(heating plate, planing tool, and hydraulic system),elbow clamps,tee clamps,cross clamps and operation box;

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

International warranty: 24months.

Any parts broken or does not work under normal operating,we are free to provide.
