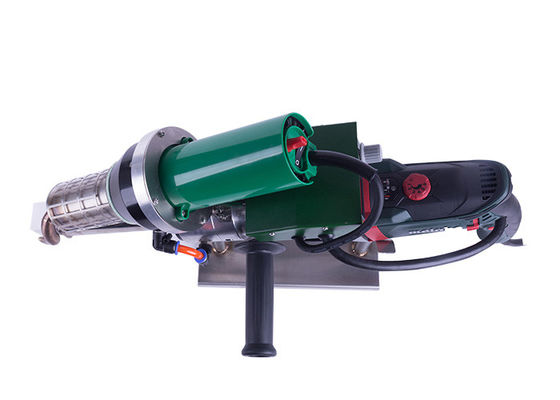

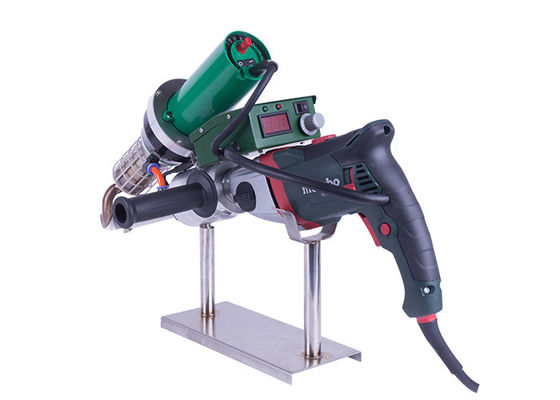

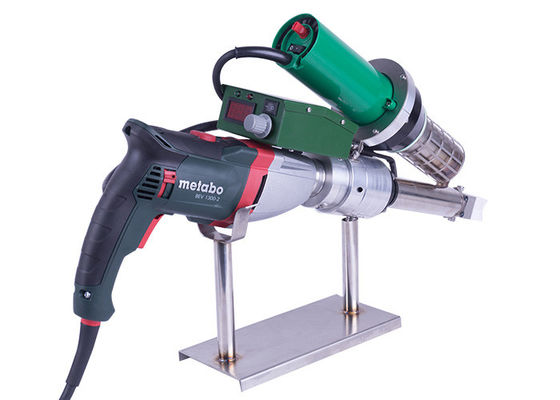

SWT-NS610B 220V Hand Held Extrusion Welding Machine Used for Welding PE PP PVC Geomembrane

Large Image : SWT-NS610B 220V Hand Held Extrusion Welding Machine Used for Welding PE PP PVC Geomembrane

Product Details:

Place of Origin:	HEBEI,CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS610B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD1,200 - 2,500/set
Packaging Details:	Aluminum Box & Carton Package
Delivery Time:	within 7 days
Payment Terms:	Western Union, T/T, PayPal
Supply Ability:	45,000 sets per month

Contact Now

Detailed Product Description

Motor:	Metabo	Application:	PE PP PVC
Voltage:	220V/110V	Frequency:	50/60Hz
Motor Power:	1300W	Hot AIr Power:	3400W
Weldable Thickness Of Material:	8 - 40mm	Air Temperature:	20 - 620℃ Adjustable
Extruding Temperature:	200 - 380℃ Adjustable	Welding Rod Diameter:	3 - 4mm, (5mm Can Be Customized)

Extrusion Welding Machine Introduction

SWT-NS610B 220V Hand Held Extrusion Welding Machine Used for Welding PE PP PVC Geomembrane it adopts 360° rotating head and metabo motor which make it very popular among skilled engineers.

Extrusion Welding Machine Technical Specifications

Product Name	Extrusion Welding Machine
Model	SWT-NS610B
Extruding Power	1300W
Hot Air Power	3400W
Extruding Temperature	200 - 380℃
Air Temperature	20 - 620℃
Extruding Volume	2.5kg/h
Driving Motor	Metabo
Welding Thickness	8 - 40mm
Welding Rod Diameter	3 - 4mm, 5mm can be customized

Extrusion Welding Machine Application

SWT-NS610B 220V Hand Held Extrusion Welding Machine Used for Welding PE PP PVC Geomembrane 0

Quality Guarantee

24 months. --If any parts broken or doesn't work under normal operating, we will provide them for free.
