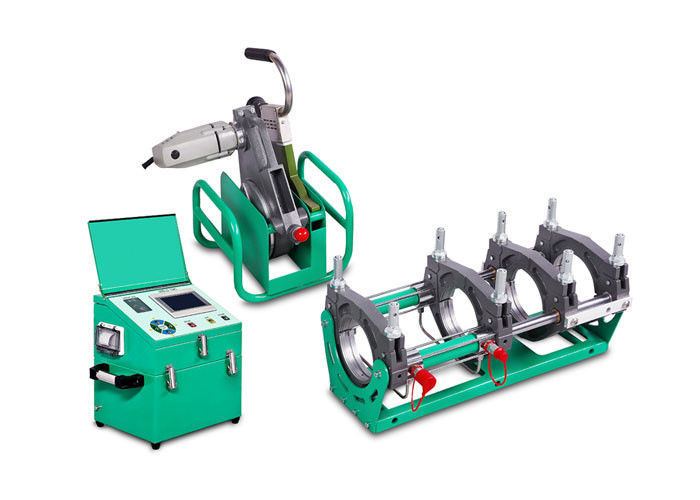

230V HDPE Pipe Butt Fusion Welding Machine Hydraulic 63mm-160mm

Large Image : 230V HDPE Pipe Butt Fusion Welding Machine Hydraulic 63mm-160mm

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V160/63A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD6,400/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	4000/set per month

Contact Now

Detailed Product Description

Voltage:	230V	Frequency:	50/60Hz
Type:	Fully Automatic	Rated Power:	2.5KW
Welding Range:	63 - 160mm	Usage:	Butt Welding
Quality Guarantee:	24 Months	Brand:	MM-TECH
Model:	SWT-V160/50A	Weldable Material:	HDPE PP PVDF And Other Thermoplastic Materials
Color:	Green	Application:	Pipe Systems
Highlight:	230V HDPE Pipe Butt Fusion Welding Machine , HDPE Pipe Butt Fusion Welding Machine Hydraulic , HDPE Pipe Butt Fusion Welding Machine 160mm

CNC 230V 63 -160mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.

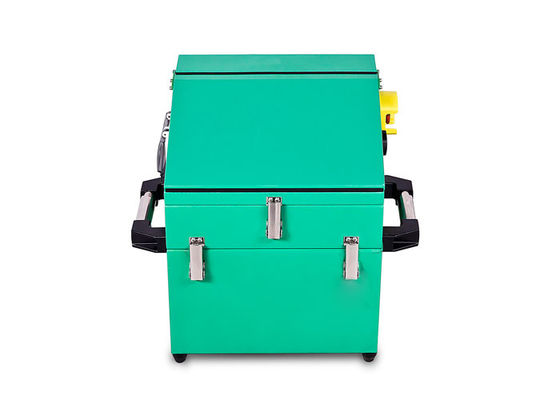

The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.

Butt Fusion Welding Machine Technical Data

Model	SWT-V160/63A
Welding Range O.D.(mm)	(50)*63 - 160
Reducer Inserts	(50)*,63,75,90,110,125,140
Power Supply	230V 50/60Hz
Rated Power(kW)	2.5
Piston Area(cm²)	6.27
Overall N.W./G.W.(kg)	96kg/124kg

Butt Fusion Welding Machine Application

230V HDPE Pipe Butt Fusion Welding Machine Hydraulic 63mm-160mm 0

Workshop Overview

230V HDPE Pipe Butt Fusion Welding Machine Hydraulic 63mm-160mm 1

Quality Guarantee

24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
