90mm 250mm Hdpe Fusion Welder

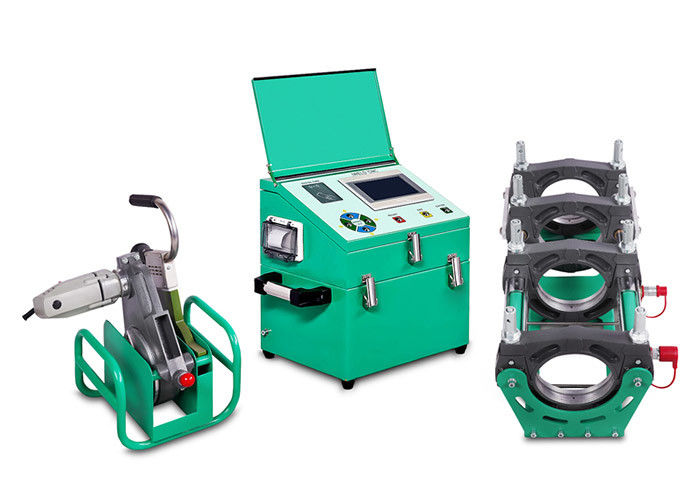

Large Image : 90mm 250mm Hdpe Fusion Welder

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V250/90A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD7,200/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 5 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	4000/set per month

Contact Now

Detailed Product Description

Voltage:	230V	Frequency:	50/60Hz
Type:	Fully Automatic	Rated Power:	4.25KW
Welding Range:	90 - 250mm	Usage:	Butt Welding
Quality Guarantee:	24 Months	Brand:	MM-TECH
Model:	SWT-V250/90A	Color:	Green
Application:	Pipe Systems	Weldable Material:	HDPE PP PVDF And Other Thermoplastic Materials
Highlight:	250mm Hdpe Fusion Welder , 90mm Hdpe Fusion Welder

CE Quick Coupling 90 - 250mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.

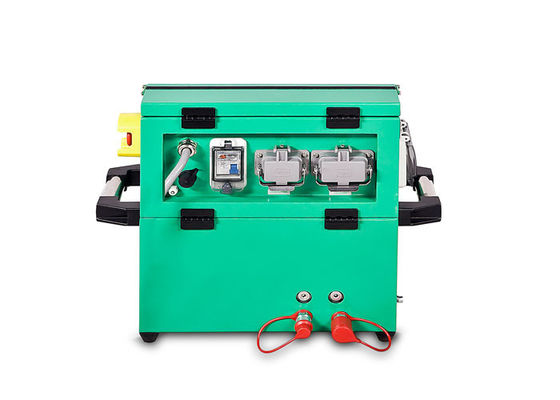

All connections sockets are located at the back of hydraulic control unit, including sockets for trimmer tool and heating plate. No additional power distributor is needed.

Butt Fusion Welding Machine Technical Parameters

Model	SWT-V250/90A
Welding Range O.D.(mm)	(75)*90 - 250
Reducer Inserts	(75)*,90,110,125,140,160,180,200,225
Power Supply	230V 50/60Hz
Rated Power(kW)	4.25
Piston Area(cm²)	10.99
Overall N.W./G.W.(kg)	137kg/163kg

Butt Fusion Welding Machine Application

90mm 250mm Hdpe Fusion Welder 0

Factory Overview

90mm 250mm Hdpe Fusion Welder 1

After Sales Service

We provide 7×24 technical service for every customer globally.
