Automatic SDR17 Hdpe Pipe Fusion Welding Machine 200mm 450mm

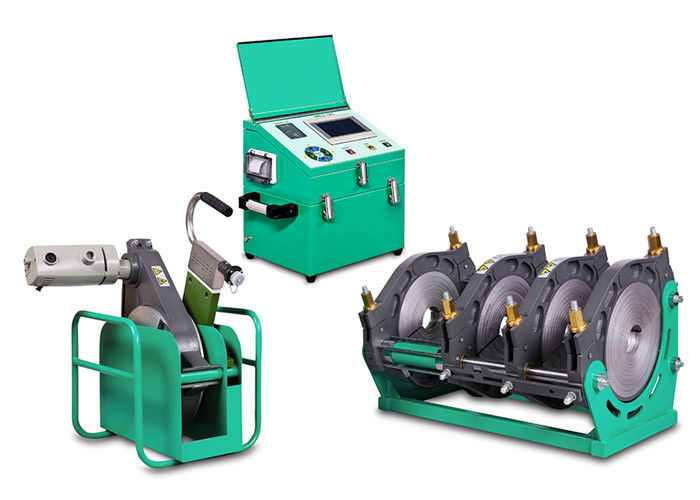

Large Image : Automatic SDR17 Hdpe Pipe Fusion Welding Machine 200mm 450mm

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V450/200A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD11,000 - 15,000/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 5 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	4000/set per month

Contact Now

Detailed Product Description

Voltage:	400V	Frequency:	50/60Hz
Rated Power:	8.3KW	Welding Range:	200 - 450mm
Usage:	Butt Welding	Quality Guarantee:	24 Months
Brand:	MM-TECH	Model:	SWT-V450/200A
Color:	Green	Application:	Pipe Systems
Type:	Fully Automatic	Weldable Material:	HDPE PP PVDF And Other Thermoplastic Materials
Highlight:	Hdpe Pipe Fusion Welding Machine , Hdpe Pipe Fusion Welding Machine 200mm , Hdpe Pipe Fusion Welding Machine 450mm

200 - 450mm Automatic SDR17 HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
When heating plate hook up with machine chassis, inserting or release the heater will be controlled remotely by hydraulic unit, which is same as trimmer. These characteristics prevent the operators from being injured.

Butt Fusion Welding Machine Specifications

Model	SWT-V450/220A
Welding Range O.D.(mm)	(200 - 250)*280-450
Reducer Inserts	(200,225,250)*,280,315,355,400
Power Supply	400V 50/60Hz
Rated Power(kW)	8.30
Piston Area(cm²)	22.37
Overall N.W./G.W.(kg)	395kg/476kg

Butt Fusion Welding Machine Fusion Varities

Automatic SDR17 Hdpe Pipe Fusion Welding Machine 200mm 450mm 0

Butt Fusion Welding Machine Application

Automatic SDR17 Hdpe Pipe Fusion Welding Machine 200mm 450mm 1

Factory

Delivery Time

24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
