315mm 630mm CNC SDR11 Hdpe Butt Fusion Machine Easy Maintenance

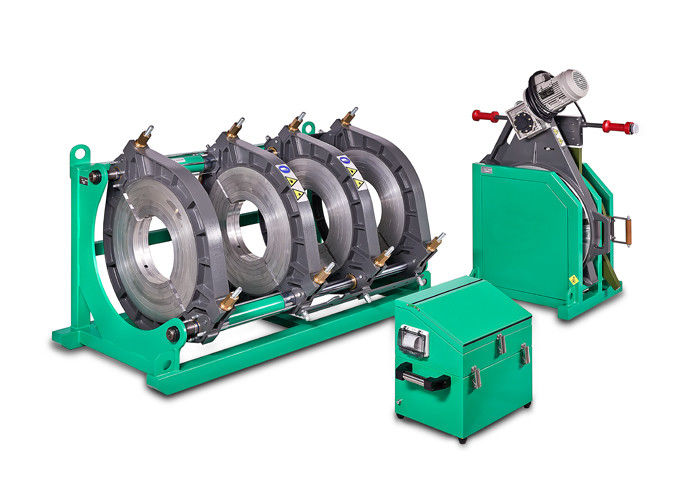

Large Image : 315mm 630mm CNC SDR11 Hdpe Butt Fusion Machine Easy Maintenance

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V630/315A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD20,000/set
Packaging Details:	3 Plywood Cases
Delivery Time:	Within 5 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	4,000/set per month

Contact Now

Detailed Product Description

Voltage:	400V	Frequency:	50/60Hz
Type:	Fully Automatic	Rated Power:	11.5KW
Welding Range:	315 - 630mm	Usage:	Butt Welding
Quality Guarantee:	24 Months	Brand:	MM-TECH
Model:	SWT-V630/315A	Color:	Green
Application:	Pipe Systems	Weldable Material:	HDPE PP PVDF And Other Thermoplastic Materials
Highlight:	315mm Hdpe Butt Fusion Machine , 630mm Hdpe Butt Fusion Machine , SDR11 Hdpe Butt Fusion Machine

315mm 630mm CNC SDR11 HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings. Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.
The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
All MM-TECH V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology. Troubleshooting and program upgrade are available for remote control.

Butt Fusion Welding Machine Listed Data

Model	SWT-V630/315A
Welding Range O.D.(mm)	315 - 630
Reducer Inserts	315,355,400,450,500,560
Power Supply	400V 50/60Hz
Rated Power(kW)	11.5
Piston Area(cm²)	23.06
Overall N.W./G.W.(kg)	608kg/719kg

Butt Fusion Welding Machine Fusion Types

Butt Fusion Welding Machine Application

315mm 630mm CNC SDR11 Hdpe Butt Fusion Machine Easy Maintenance 1

FAQ

Quality Guarantee	2 years
Payment Method	Bank Transfer, PayPal, WesternUnion
Delivery Time	Within 7 days after received your payment
