SWT-NS600B Automatic Hand Held for Plastic Geomembrane Extrusion Welding Machine

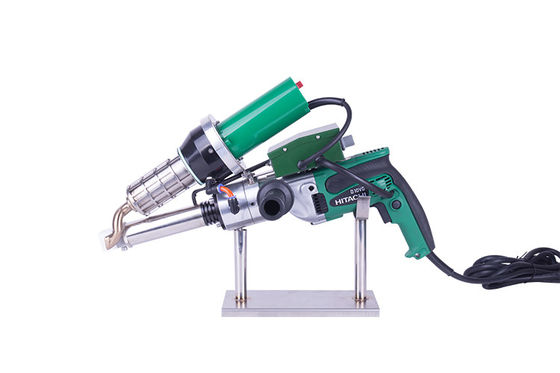

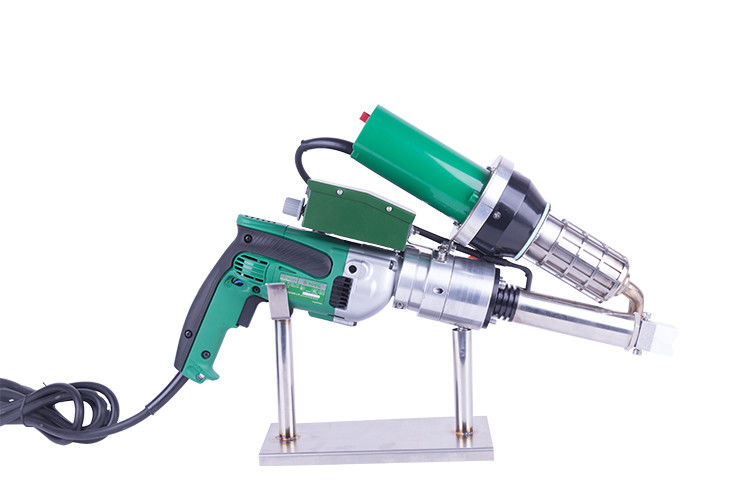

Large Image : SWT-NS600B Automatic Hand Held for Plastic Geomembrane Extrusion Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS600B

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1650-USD1950 per set

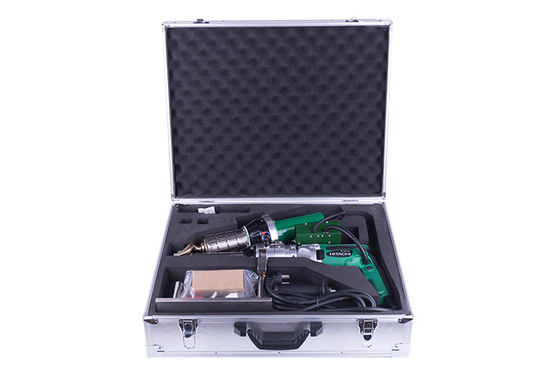

Packaging Details:	Aluminum Alloy Box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Weight:	13kg	Voltage:	110V/220V
Frequency:	50/60Hz	Power:	3400W
After-sales Service Provided:	Online Support,Video Technical Support	Warranty:	2 Years
Color:	Green	Type:	Extruder
Hot Air Power:	800W
Highlight:	automatic hand held extrusion welder , plastic geomembrane welding machine , extrusion welding machine with warranty

Extrusion Welder Machine Instruction:

Plastic geomembrane extrusion welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.
Handheld plastic extrusion welding machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover.
Welding machines for polypropylene and polyethylene pipes.
Automatic four point welders are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.

Extrusion Welder Machine Specification:

Voltage:	220V
Frequency:	560/60HZ
Power:	3400W Hot Air + 800W Hitachi Motor
Wind Temperature:	20-600℃
Heating Temperature When Extruding:	200-380℃
Extruding Volume:	2 kg/h
Diametere of Welding Rod:	Φ3.0mm-4.0mm
Weight:	6.5 kg
Usage:	PVC Tarpaulin Welding Extruder
Welding Thickness	8-40mm

Extrusion Welder Machine Features:

1.This series of welding machine is powerful with high welding speed and good

welding quality.
2.It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
3.It is the first one to have a digital display control, 360 degree rotating welding head,
the motor cold start protection, independent heating of welding rod and membrane

material and other functions in China.

Package:

After-Sales Service:

We always provide high quality products and workable price for every clients and

have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work

under normal operating, we provide them for free.
