380V PVC Plastic Sheet Welding Machine

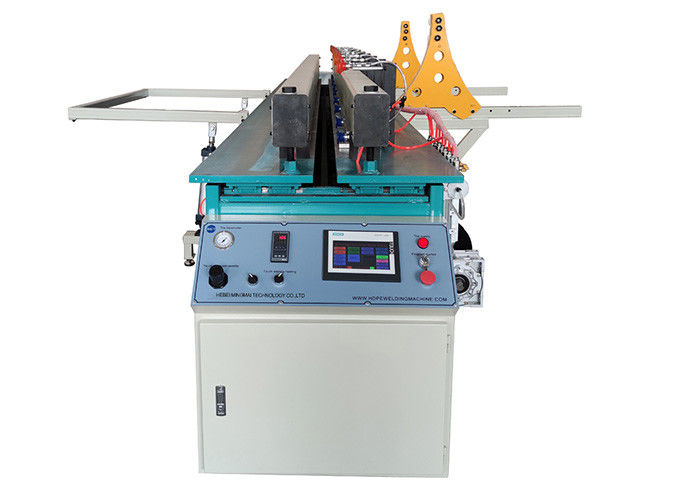

Large Image : 380V PVC Plastic Sheet Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-PH2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$9,600-US$14,800/set
Delivery Time:	Within 7 days
Payment Terms:	L/C, D/A, D/P, Western Union, T/T, PayPal

Contact Now

Detailed Product Description

Model:	SWT-PHW000	Rated Voltage:	380V
Rated Current:	9A	Heating Power:	4KW
Rolling Motor Power:	1.5KW	Frequency:	50/60Hz
Roll Circle Min Diameter:	380mm	Max. Working Length:	2000mm
Welding Thickness:	3.0-30.0mm	Air Pressure:	4.0-8.0kg.f / Cm²
Highlight:	380V PVC Plastic Sheet Welding Machine , Plastic Sheet Welding Machine 380V

SWT-PH2000 Fully Automatic 380V PVC Plastic Sheet 90° Joint Welding Equipment

Plastic Sheet Joint Welding Equipment Features

The surface of the heating element is coated with Teflon.
Device equipped with automatic winding device mechanism.
Suitable material: PP, PE, PVDF, PVC, PPN, etc.
Can be customized according to customer requirements.
Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

Plastic Sheet Joint Welding Equipment Technical Data

Spefication/size	SWT-PH2000
Welding Thickness(mm)	3.0-30.0
Max. Woking Length(mm)	2000
Roll Circle Min Diameter(mm)	380
Air Pressure(kg.f / cm²)	4.0-8.0
Energy Source(m³ / min)	0.0032
Rated Voltage(V)	380V, 50/60Hz
Rated Current(A)	9A
Heating Power(kW)	4kW
Power of Rolling Power(kW)	1.5kW
Heating Mode	Overall Heating
Drum Institutions(parts)	Optional
Machine Size(L×W×H)mm	280012001200
PacKING Size(L×W×H)mm	300013001450
N.W KGS	850KG
G.W KGS	1000KG

Plastic Sheet Joint Welding Equipment Application

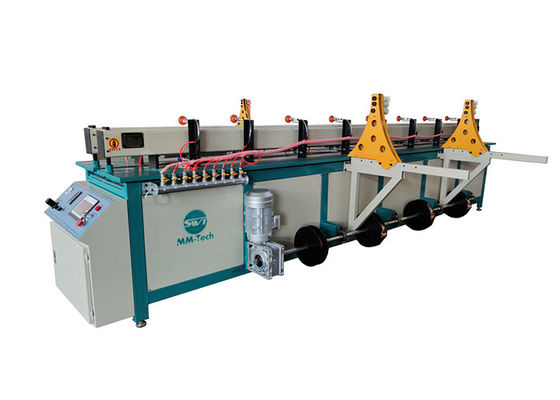

380V PVC Plastic Sheet Welding Machine 0

Plastic Sheet Joint Welding Equipment Debugging

380V PVC Plastic Sheet Welding Machine 1

Quality Guarantee

24 months. If any parts broken or doesn't work under normal operating, we are free to offer.

Tag:

380V Plastic Sheet Welding Machine,

Sheet Butt Fusion Welder 1000KG,

Plastic Sheet Welding Machine 1000KG
