SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor

SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor
SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor

Large Image :  SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor

Product Details:
Place of Origin: China
Brand Name: MM-Tech
Certification: CE
Model Number: SWT-NS610B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1800-2000/set

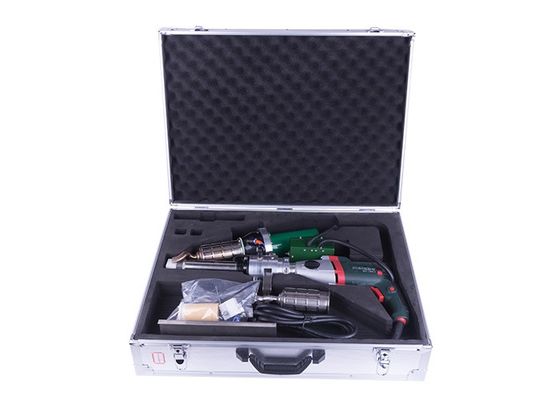

Packaging Details: Aluminium alloy Box
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10 sets / day
Detailed Product Description
Product Name: Extrusion Welder Acceccories: Overlap/ Fillet Welding Shoe, Heating Element, Etc
Welding Rod Diameter: 3.0/4.0/5.0mm Welding Thickness: 8-40mm
Motor: METABO Welding Speed: 2.5kg/h
Warranty: 2 Years Power: 3400w
Color: Green Certification: CE
Highlight:

5mm Rod Handheld Plastic Welder

,

3400w Handheld Plastic Welder

,

2.5kg/h Handheld Plastic Welder

                            SWT - NS610B Germen Motor Support 5mm Rod Hand Held Extrusion Welder



SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor 0





   MM-Tech: SWT-NS610B EXTRUSION WELDER





-------This extrusion welder is the first one in China that has functions of double independent heating systems, digital display controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE,PP,PVC,PVDF and other hot melt material.




Extrusion Welder Specification:


Item no.: SWT-NS610B
Voltage: 220V/110V
Frequency: 50/60 HZ
Power: 3400w
Welding Speed: 2.5kg/h
Welding Width: 8-40mm
Heating Temperature: 20-600℃
Certification: CE
Warranty: 2 years



Features:



1. Double heating system: welding rod feed heating system and hot air heating system make sure the best welding quality.

2. Digital display controller microcomputer chip controller makes easy operation.

3. 360 degree rotating welding head: the 360 degree rotating hot air welding nozzle can be applied to different needs.

4. Motor cold start protection: extruding motor well shut down automatically if it has not reached the preset melting temperature, which avoid lose  caused by operating mistake.

5. Driving motor: METABO



CE Certification:



SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor 1



Extrusion Welder Application:



1.Hand Held Plastic Extrusion Welder is used for welding PE, PP, PVC, PVDF, HDPE and so on.

2.Hand held Plastic Extrusion Welding Machines are used for plastic sheets, and bitumen waterproofing and packaging materials with hot air for tanks and lining and agricultural and environmental cover.

3.Welding machines for polypropylene and polyethylene pipes.

4.Hand held Plastic Extrusion Welding Machines are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing projects.



                SWT-NS610B 5mm Rod Handheld Plastic Welder With German Motor 2



















Services:



-----------We always provide high quality products and workable price for every clients and have won the confidence and approval.

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
