SWT-NS600A 220V Waterproof HDPE Hand Extrusion Welding Machine

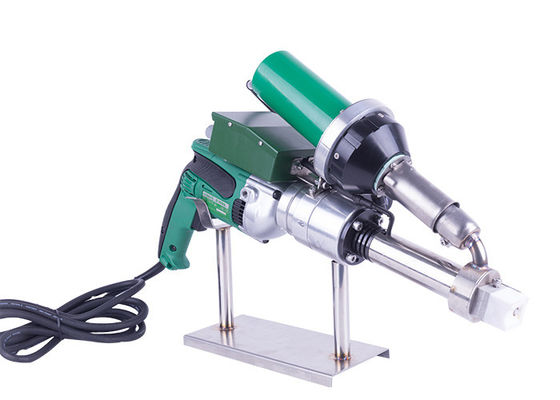

Large Image : SWT-NS600A 220V Waterproof HDPE Hand Extrusion Welding Machine

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1300 - US$1500 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9000 sets / months

Contact Now

Detailed Product Description

Product Name:	Extrusion Welder	Model:	SWT-NS600A
Voltage:	220V/110V	Extruding Motor Power:	800W
Hot Air Power:	1600W	Air Temperature:	20 - 620℃ Adjustable
Extruding Volume:	2.0kg/h	Motor:	HITACHI
N.W:	6.5kg	G.W:	13kg
Material Thickness:	1 - 20 Mm	Welding Rod Diameters:	3 - 4 Mm, 5 Mm Can Be Customized
Weldable Material:	PE PP PVC PVDF And Other Thermoplastic Material	Quality Guarantee:	24 Months
Life Of The Heating Element:	1200 Hours

Extrusion Welding Machine Introduction

SWT-NS600A Waterproof HDPE Hand Extrusion Welding Machine has funcations of

double independent heating systems
digital display controller,
360° rotating welding head
motor cold start protection

which is available to welding PVDF and other hot melt material.

Extrusion Welding Machine Technical Data

Model	SWT-NS600A
Voltage	220V/110V
Freuqeny	50/60Hz
Weldable Material	PE PP PVC PVDF and other thermopalstic material
Motor	HIKOKI
Extruding Power	800W
Extruding Volume	2.0kg/h
Extruding Temperature	200 - 380℃
Welding Rod Diameter	3 - 4mm, (5mm can be customized)
Material Thickness	1 - 20mm
