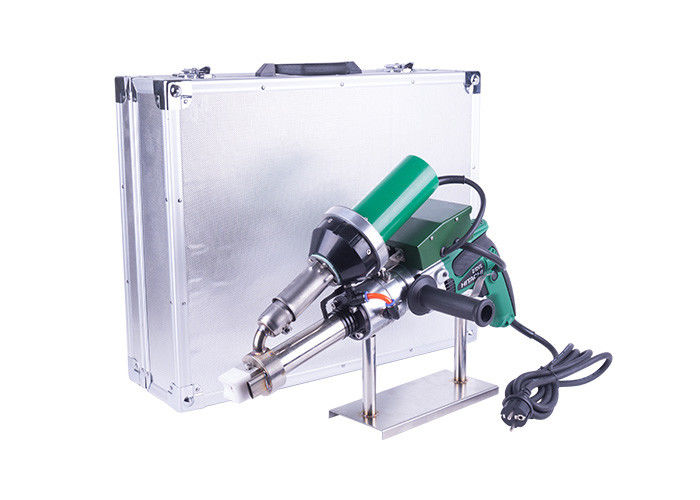

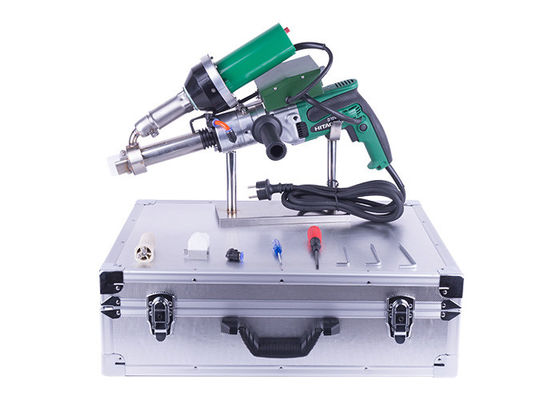

Water Tank Hdpe Extrusion Welder Double Independent Heating System

Large Image : Water Tank Hdpe Extrusion Welder Double Independent Heating System

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1300 - US$1500 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9000 sets / months

Contact Now

Detailed Product Description

Model:	SWT-NS600A	Voltage:	220V/110V
Extruding Motor Power:	800W	Hot Air Power:	1600W
Extruding Volume:	2.0kg/h	Motor:	HITACHI
N.W:	6.5kg	G.W:	13kg
Material Thickness:	1 - 20 Mm	Quality Guarantee:	24 Months
Air Temperature:	20 - 620℃ Adjustable	Life Of The Heating Element:	1200 Hours
Welding Rod Diameters:	3 - 4 Mm, 5 Mm Can Be Customized	Weldable Material:	PE PP PVC PVDF And Other Thermoplastic Material
Highlight:	Water Tank Hdpe Extrusion Welder , 6.5kg Hdpe Extrusion Welder , Hdpe Extrusion Welder Double Independent Heating

CE Approved Water Tank High-Density Polyethylene Extrusion Welding Machine

Extrusion Welding Machine Introduction

CE Approved Water Tank High-Density Polyethylene Extrusion Welding Machine has funcations of double independent heating systems, digital display controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE, PP, PVC, PVDF and etc.

Extrusion Welding Machine Technical Data

Model	SWT-NS600A
Voltage	220V/110V
Frequency	50/60Hz
Extruding Power	800W
Hot Air Power	1300W
Extruding Temperature	200 - 380℃ Adjustable
Air Temperature	20 - 620℃ Adjsutable
Driving Motor	HITACHI(New Name: HIKOKI)
Material Thickness	1 - 20mm
Welding Rod Diameter	3 - 4mm, (5mm can be customized)

Extrusion Welding Machine Application

Extrusion Welding Machine Exhibtion
