Poly Vinyl Chloride Pipe Extrusion Welding Machine 110 Voltage With Hikoki Motor

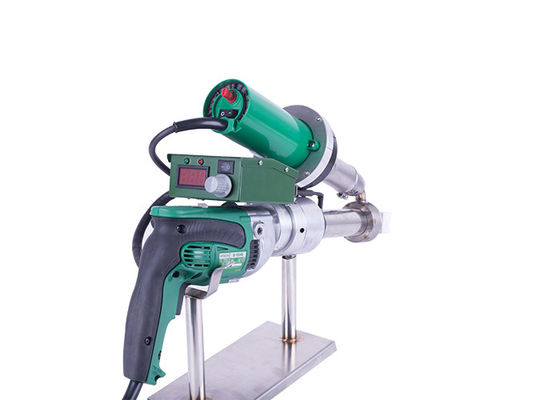

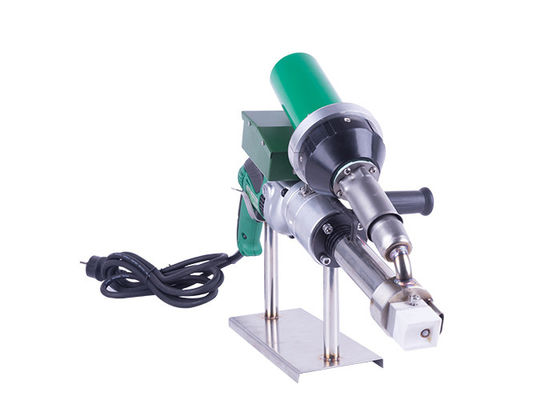

Large Image : Poly Vinyl Chloride Pipe Extrusion Welding Machine 110 Voltage With Hikoki Motor

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1300 - US$1500 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9000 sets / months

Contact Now

Detailed Product Description

Model:	SWT-NS600A	Voltage:	220V/110V
Extruding Motor Power:	800W	Hot Air Power:	1600W
Extruding Volume:	2.0kg/h	Motor:	HITACHI
N.W:	6.5kg	G.W:	13kg
Material Thickness:	1 - 20 Mm	Quality Guarantee:	24 Months
Life Of The Heating Element:	1200 Hours	Air Temperature:	20 - 620℃ Adjustable
Welding Rod Diameters:	3 - 4 Mm, 5 Mm Can Be Customized	Weldable Material:	PE PP PVC PVDF And Other Thermoplastic Material
Highlight:	Poly Vinyl Chloride Extrusion Welding Machine , Extrusion Welding Machine 110 Voltage

110 Voltage Poly Vinyl Chloride Plastic Pipe Extrusion Welding Machine

Extrusion Welding Machine Features

Hikoki Motor
LCD Temperature controller system
360 ° rotating welding head
double heating system
motor cold protection

Extrusion Welding Machine Parameters

Model	SWT-NS600A
Voltage	220V/110V
Frequency	50/60Hz
Extruding Power	800W
Hot Air Power	3400W
Extruding Temperature	200 - 380℃
Air Temperature	20 - 620℃
Welding Rod Diameter	3-4mm, 5mm can be customized
Materials Thickness	1 - 20mm
Weldable Material	PE PP PVC PVDF and etc.

Extrusion Welding Machine Application

Poly Vinyl Chloride Pipe Extrusion Welding Machine 110 Voltage With Hikoki Motor 0

Extrusion Welding Machine Exhibition

FAQ

Extruding Speed

2.0kg/h
