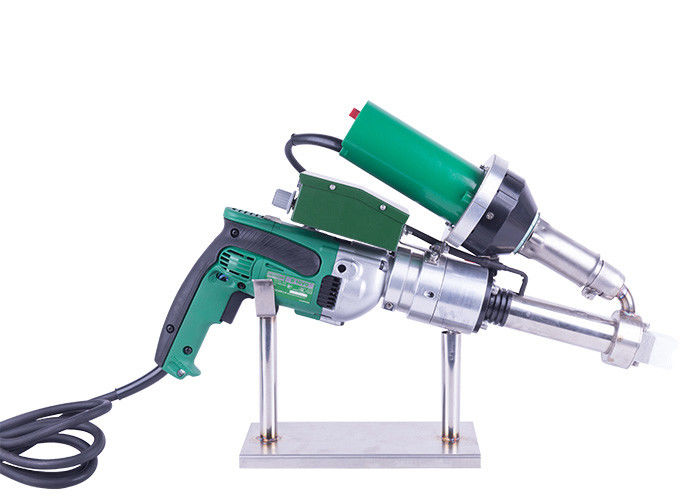

Wire Feeder Hdpe Extrusion Welding Gun With Digital Display Controller

Large Image : Wire Feeder Hdpe Extrusion Welding Gun With Digital Display Controller

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1300 - US$1500 / set

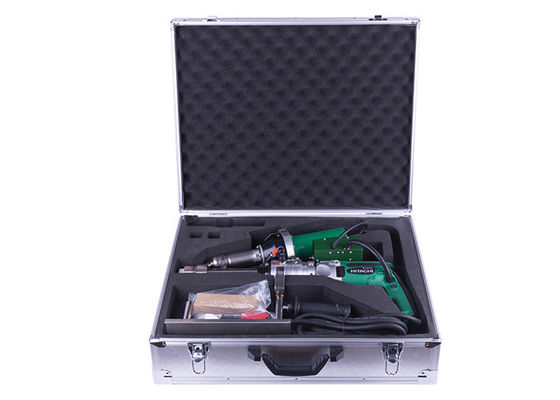

Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9000 sets / months

Contact Now

Detailed Product Description

Product Name:	Extrusion Welder	Model:	SWT-NS600A
Voltage:	220V/110V	Extruding Motor Power:	800W
Hot Air Power:	1600W	Air Temperature:	20 - 620℃ Adjustable
Extruding Volume:	2.0kg/h	Motor:	HITACHI
N.W:	6.5kg	G.W:	13kg
Material Thickness:	1 - 20 Mm	Welding Rod Diameters:	3 - 4 Mm, 5 Mm Can Be Customized
Weldable Material:	PE PP PVC PVDF And Other Thermoplastic Material	Quality Guarantee:	24 Months
Life Of The Heating Element:	1200 Hours
Highlight:	Hdpe Extrusion Welding Gun , Wire Feeder Hdpe Extrusion Welding Gun , 220V Hdpe Extrusion Welding Gun

Wire Feeder HDPE Butt Welding Shoe Extrusion Welding Machine

Extrusion Welding Machine Function

Wire Feeder HDPE Butt Welding Shoe Extrusion Welding Machine has funcations of

double independent heating systems
digital display controller
360 degree rotating welding head
motor cold start protection

which is applicable to welding PE, PP, PVC, PVDF and other hot melt material.

Extrusion Welding Machine Technical Information

Model	SWT-NS600A
Voltage	220V/110V
Frequency	50/60Hz
Driving Motor	HIKOKI(New name of HITACHI)
Extruding Power	800W
Extruding Temperature	200-380℃
Extruding Volume	2.0kg/h
Air Temperature	20 - 620℃ Adjustable
Welding Rod Diameter	3-4mm, 5mm can be customized
Material thickness	1-20mm
