Polyvinylidene Fluoride Extrusion Welding Machine 50HZ 60HZ CE Approved

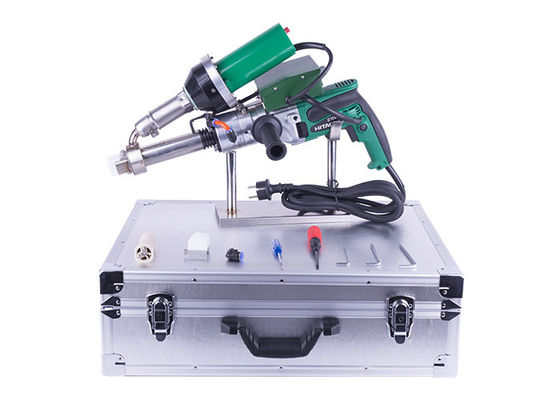

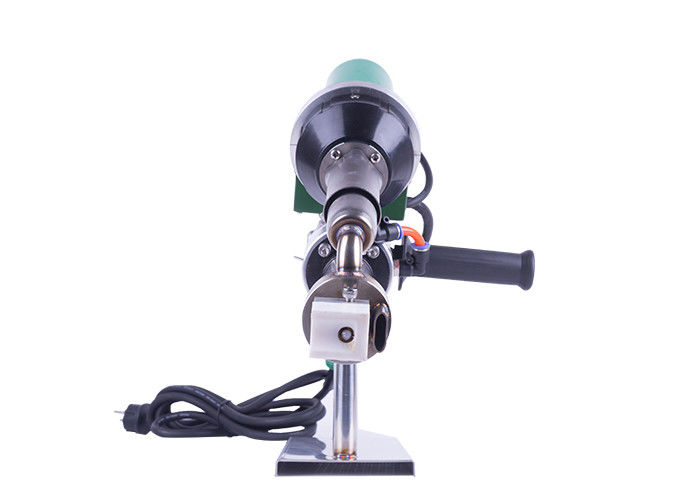

Large Image : Polyvinylidene Fluoride Extrusion Welding Machine 50HZ 60HZ CE Approved

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-NS600A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$1300 - US$1500 / set
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9000 sets / months

Contact Now

Detailed Product Description

Product Name:	Extrusion Welder	Model:	SWT-NS600A
Voltage:	220V/110V	Extruding Motor Power:	800W
Hot Air Power:	1600W	Air Temperature:	20 - 620℃ Adjustable
Extruding Volume:	2.0kg/h	Motor:	HITACHI
N.W:	6.5kg	G.W:	13kg
Material Thickness:	1 - 20 Mm	Welding Rod Diameters:	3 - 4 Mm, 5 Mm Can Be Customized
Weldable Material:	PE PP PVC PVDF And Other Thermoplastic Material	Quality Guarantee:	24 Months
Life Of The Heating Element:	1200 Hours
Highlight:	Polyvinylidene Fluoride Extrusion Welding Machine , Extrusion Welding Machine 50HZ , Extrusion Welding Machine 60HZ

90° Welding Shoe Wire Feeder Polyvinylidene Fluoride Extrusion Welding Machine

Extrusion Welding Machine Introduction

SWT-NS600A 90° Welding Shoe Wire Feeder Polyvinylidene Fluoride Extrusion Welding Machine has funcations of double independent heating systems, digital display controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE, PP, PVC, PVDF and other hot melt material.

Extrusion Welding Machine Technical Data

Model	SWT-NS600A	SWT-NS600B	SWT-NS600C	SWT-NS600E
Voltage	220V/110V
Frequency	50/60Hz
Extruding Motor Power	800W
Hot Air Power	1600W	3400W	1600W	3400W
Welding Rod Heating Power	800W
Air Temperature	20 - 620℃
Extruding Volume	2.0kg/h
Welding Rod Diameter	3 - 4 mm, 5mm can be customized
Driving Motor	HITACHI(New Brand: HIKOKI)
N.W	6.5kg
G.W	13kg

Extrusion Welding Machine Application

Polyvinylidene Fluoride Extrusion Welding Machine 50HZ 60HZ CE Approved 0

Packing Size

1 Alloy Box Inside and 1 Carton Outside.

L×W×H	640×190×500 mm
N.W	6.5kg
G.W	13kg

Quality Guarantee

24 months -- If any parts broken or doesn't work under normal operating, we will provide them for free.
