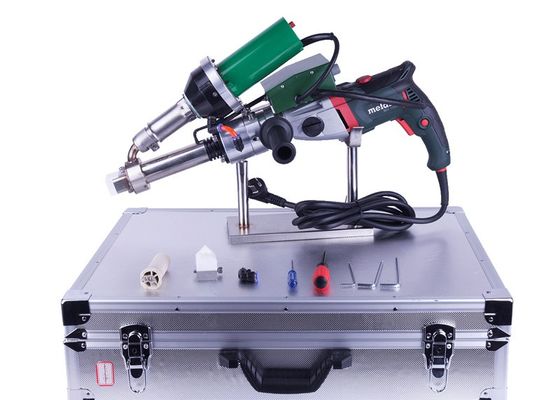

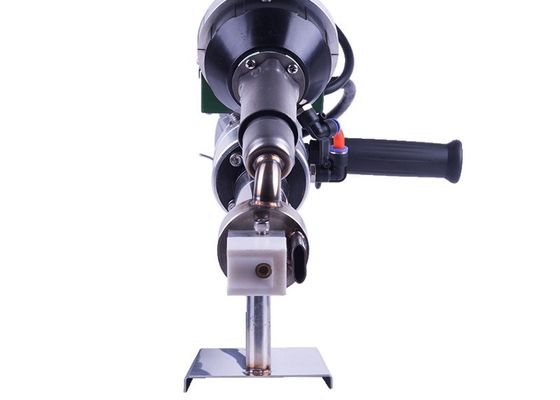

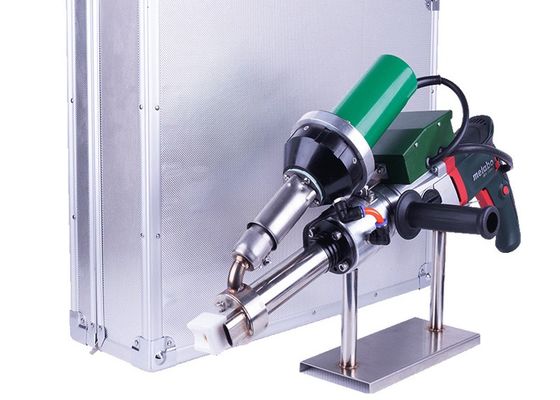

SWT - 610A 220V 5mm Rod Suitable Green Type Extrusion Welding Gun

Large Image : SWT - 610A 220V 5mm Rod Suitable Green Type Extrusion Welding Gun

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-NS610A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1700-1900/set
Packaging Details:	Aluminium alloy Box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Extrusion Welding Machine	Welding Rod Diameter:	3.0,4.0,5.0mm
Heating Temperature:	20-600 ℃	Motor:	METABO
Welding Thickness:	1-20mm	Frequency:	50/60Hz
Welding Speed:	2.5kg/h	Warranty:	2 Years
Power:	1600w	Certification:	CE

SWT - 610A 220V 5mm Rod Suitable Green Type Extrusion Welding Gun 0

MM-Tech: SWT-NS610A Extrusion Welding Machine

-------This Extrusion Welding Machine is the first one in China that has functions of double independent heating systems, digital display controller, 360 degree rotating welding head, motor cold start protection, which is applicable to welding PE,PP,PVC,PVDF and other hot melt material.

Extrusion Welding Machine Specification:

Item no.:	SWT-NS610A
Voltage:	220V/110V
Frequency:	50/60 HZ
Power:	1600w
Welding Speed:	2.5kg/h
Welding Width:	1-20mm
Heating Temperature:	20-600℃
Certification:	CE
Warranty:	2 years

Extrusion Welding Machine Advantage:

1.Double heating system: welding rod feed heating system and hot air heating system make sure the best welding quality.

2.Digital display controller microcomputer chip contoller makes easy operation.

3.360 degree rotating welding head: the 360 degree rotating hot air welding nozzle can be applied to defferent needs.

4. Motor cold start protection: extruding motor well shut down automatically if it has not reached the preset melting temperature, which avoid lose caused by operating mistake.

5. Driving Motor: METABO

Extrusion Welding Machine Application:

SWT - 610A 220V 5mm Rod Suitable Green Type Extrusion Welding Gun 1

Tips:

a. Preheating 3-5 mins and make previous welding flux soften, then using tools to pick out the softened flux before start work.

b. This Hand Extruder is welded with PE/PP/HDPE welding rod Φ3.0-4.5mm, the welding speed is 1.8-3.6Kg/h.
c. Any customized demands, you can ask us directly. We have professional technicians team.

Delivery Pictures:
