63mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase

63mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase
63mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase

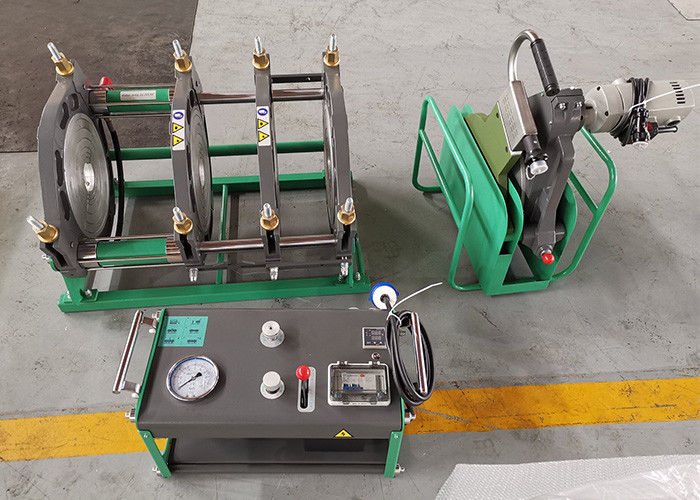

Large Image :  63mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase

Product Details:
Place of Origin: China
Brand Name: MM-Tech
Certification: CE
Model Number: SWT-V160/63H
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: US$1800-US$2100
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Butt Fusion Welding Machine Pipe Size: 63,75,90,110,125,140,160
Optional Size: 50 Total Power: 2.5KW
Voltage: 220V Working Pressure Range Bar: 0-80
Total Cylinder Area: 6.27 Cm² STD Conformity: ISO12176-1 DVS2208-11
Support Customized: Yes Volume: 0.46CBM
Highlight:

PVDF Plastic Pipe Fusion Welding Machine

,

63mm Plastic Pipe Fusion Welding Machine

,

Pipe Fusion Welding Machine 230V

Butt Fusion Welding Machine Description:

It is used for butt welding pipes and accessories such as elbow, tees,
wye and flange necks without any additional equipment simply by adjusting the drawbar of the clamps.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.

Butt Fusion Welding Machine Specification:



Model SWT-V160/63H
Pipe size (mm) 63/75/90/110/125/140
Heating plate Max.Temperature 270℃
Temp.deviation in surface (170-250°℃) ≤±7℃
Pressures Adjustable Ranges 0-6.3Mpa
Working Voltage 220V,50/60Hz , single phase
Heating plate power 1.0KW
Planing tool power 0.7KW
Hydraulic unit power 0.75KW
Total Power 2.45KW
Weight 260KG
Packing Cases 2 plywood cases
Volume 0.46 CBM

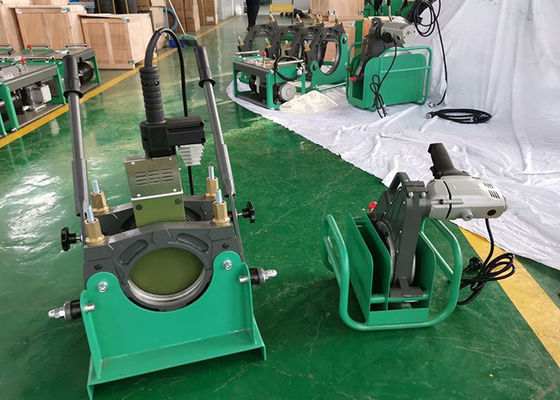

Our Factory:



63mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase 063mm 160mm PP PVDF Plastic Pipe Fusion Welding Machine 230V Single Phase 1



Company Profile:



Hebei Mingmai Technology Co.,LTD (MM-Tech) is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China.

Our main products: butt fusion machine,socket fusion machine,electrofusion machine,hot air welders,hot air welding machine, extrusion welders, geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.



All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.
Any parts broken or does not work under normal operating,we are free to provide.
