Butt Fusion Polypropylene Pipe Welding Machine ISO Standard

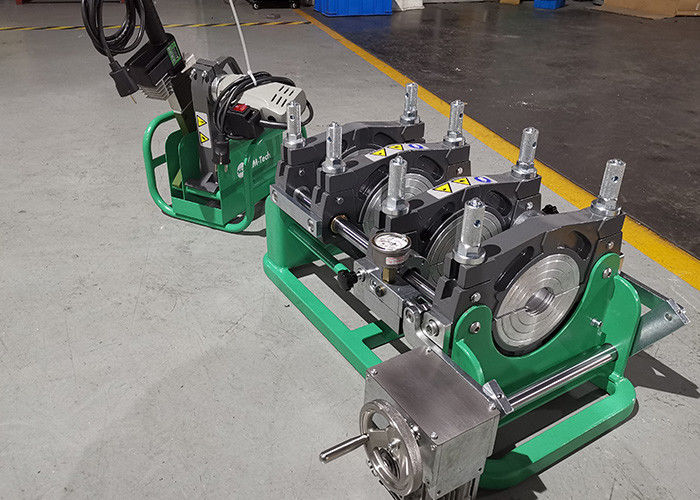

Large Image : Butt Fusion Polypropylene Pipe Welding Machine ISO Standard

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V200/63H

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$2000-US$2300
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welding Machine	Pipe Size:	63,75,90,110,125,140,160,180,200
STD Conformity:	ISO12176-1 DVS2208-11	Volume:	0.48CBM
Total Cylinder Area:	6.27 Cm²	Total Power:	3.0KW
Voltage:	220V	Working Pressure Range Bar:	0-80
Optional Size:	50	Support Customized:	Yes
Highlight:	3.0KW Polypropylene Pipe Welding Machine , 220V Polypropylene Pipe Welding Machine , Polypropylene Pipe Welding Machine ISO

SWT - V200 / 63H Customized ISO Stand PP Pipe Butt Fusion Welding Machine

Butt Fusion Welding Machine Description:

It is used for butt welding pipes and accessories such as elbow, tees,
wye and flange necks without any additional equipment simply by adjusting the drawbar of the clamps.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.

Butt Fusion Welding Machine Specification:

Model number	SWT-V200/63H
Welding Range(mm)	63,75,90,110,125,140,160,180
Packing Mode	Wooden Box
Total Volume	0.48CBM
Gross Weight	141KG
Total Power	3.0kw 220v

SWT-V200/63H Includes:

*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.

CE Certification:

Butt Fusion Polypropylene Pipe Welding Machine ISO Standard 0

Butt Fusion Welding Machine Strength:

1.Electric milling cutter, safety limit switch, prevent milling cutter from accidentally starting.

2.Frame main part is aluminum alloy material ,45°tilt design.

3.Low start pressure, high reliability sealing structure.

4.Welding position can be changed to facilitate the welding of various pipe fittings.

5.Independent dual-channel timer, can record heat absorption and cooling two time periods, timing end alarm, convenient for users.

6.Large dial, high precision shockproof pressure gauge, more clear reading.

All machine components are covered by MM-Tech warranty

Butt Fusion Polypropylene Pipe Welding Machine ISO Standard 1
