Butt Fusion Welder Description:

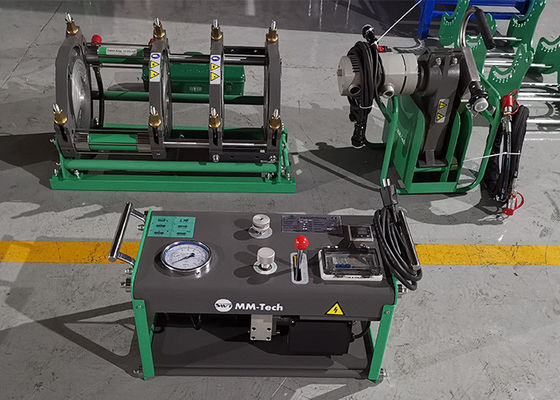

SWT-V250/90H butt fusion welder is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts
Butt Fusion Welder Specification:
| Model |
SWT-V250/90H |
| Pipe size (mm) |
90mm,110mm,125mm,140mm,160mm,180mm,200mm
,225mm,250mm |
| Heating plate Max. temp. |
270℃ |
| Temp. deviation in surface(170-250) |
≤±7℃ |
| Max working pressure hydraulic station |
0-6.3Mpa |
| Working voltage |
220v |
| Working frequency |
50-60HZ |
| Hydraulic Unit voltage of hydraulic station |
0.75KW/220V |
| Powerl voltage of planning tool motor |
1.1KW/220V |
| Powerlvoltage of heating plate |
2KW220V |
| Total Power |
3.85KW |
| Overall weight of machine (kg) |
180KG |
All machine components are covered by MM-Tech warranty
Butt Fusion Welder Features:
1. Detaching device is especially designed to break off melted pipes end from the heating plate on the expiry of heating up.
2. Safety switch enables the trimmer to start only when it is located in the operation position.
3. A mechanical lock excludes the disengagement of the trimmer during the operation
4. Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped with digital temperature controller
5. Low temperature difference in heating plate surface, within 5 degree

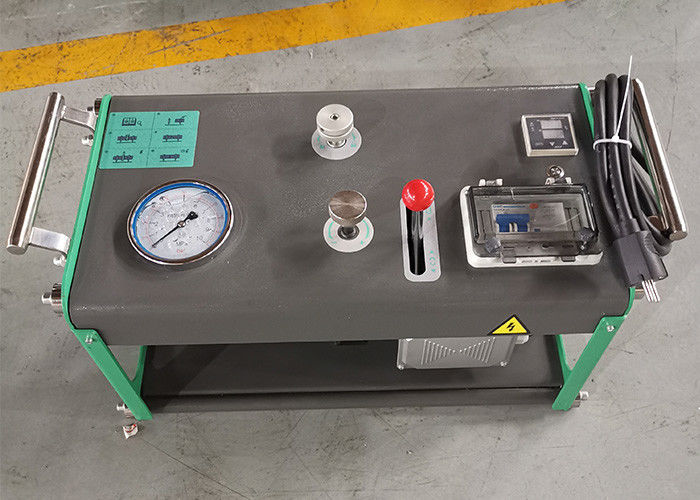

6. Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation valve, swing check valve, high pressure hoses, and quick couplers
Butt Fusion Welder Application:
It is suitable for welding plastic pipes and fittings with PE, PP and PVDF in ditches of site or workshop.
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty:24months.
Any parts broken or does not work under normal operating,we are free to provide.
