HDPE Hydraulic Butt Fusion Welding Machine Customized 2 Year Warranty

Large Image : HDPE Hydraulic Butt Fusion Welding Machine Customized 2 Year Warranty

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V355/90H

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$3000-US$3300
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welder	Pipe Size:	90,110,125,140,160,180,200,225,250,280,315,355
STD Conformity:	ISO12176-1 DVS2208-11	Total Cylinder Area:	20.02cm²
Volume:	1.04CBM	Total Power:	6.25KW
Voltage:	220V	Working Pressure Range Bar:	0-80
Support Customized:	Yes	Optional Size:	No
Highlight:	HDPE Hydraulic Butt Fusion Welding Machine , Hydraulic Butt Fusion Welding Machine Customized , HDPE Butt Fusion Welding Machine Customized

SWT - V355 / 90H HDPE Hydraulic Plastic Customzeds DVS Butt Fusion Welding Machine

Butt Fusion Weldeing Machine Description:

It is used for butt welding pipes and accessories such as elbow, tees, wye and flange necks without any additional equipment simply by adjusting the drawbar of the clamps.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.

Butt Fusion Weldeing Machine Specification:

SWT-V355/90H
Pipe Size:	90,110,125,140,160,180,200,225,250,280,315,355
Working Voltage:	220V, 50/60HZ
Optional Size	No
Total Power	6.25KW
Voltage	220V
Working Pressure Range Bar	0-80
Volume:	1.04CBM
STD Conformity	ISO12176-1 DVS2208-11
Warranty:	2 years

Operation Process:

It welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.

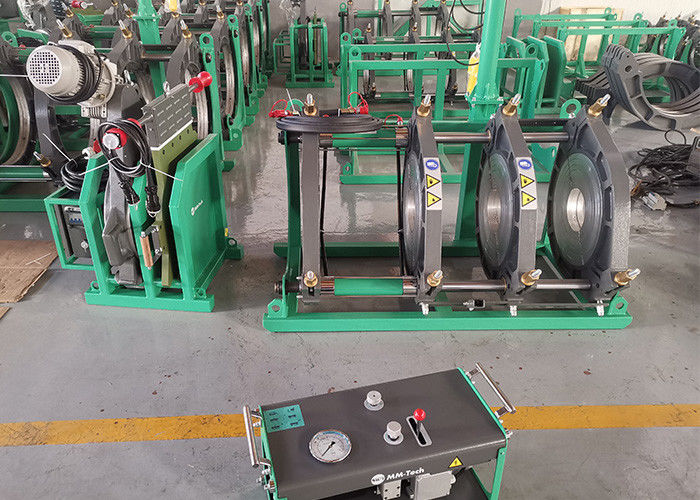

HDPE Hydraulic Butt Fusion Welding Machine Customized 2 Year Warranty 0

Exhibition:

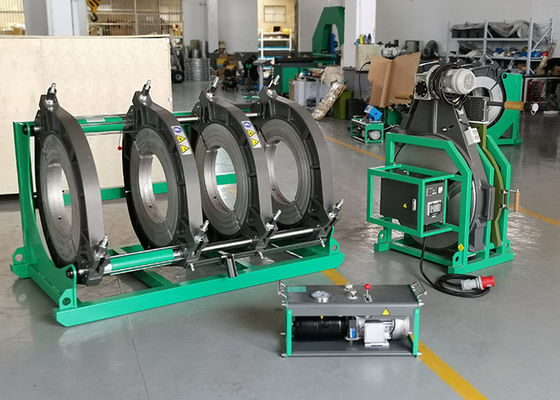

HDPE Hydraulic Butt Fusion Welding Machine Customized 2 Year Warranty 1
