Voltage Customized Poly Fusion Welder Pe Pipe Joint Butt Fusion Machine

Large Image : Voltage Customized Poly Fusion Welder Pe Pipe Joint Butt Fusion Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V450/200H

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$4800-US$5200
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welding Machine	Pipe Size:	200,225,250,280,315,355,400
STD Conformity:	ISO12176-1 DVS2208-11	Total Power:	8.38 KW
Volume:	2.01CBM	Total Cylinder Area:	22.37cm²
Voltage:	220V	Working Pressure Range Bar:	0-120
Support Customized:	Yes	Optional Size:	No
Highlight:	8.38 KW Poly Fusion Welder , Pipe Joint Butt Fusion Machine , 220V Poly Fusion Welder

SWT - V450 / 250H Voltage Customized Poly Welder Pe Pipe Joint Butt Fusion Machine

Butt Fusion Welding Machine Description:

It is used for butt welding pipes and accessories such as elbow, tees,
wye and flange necks without any additional equipment simply by adjusting the drawbar of the clamps.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.

Butt Fusion Welding Machine Specification:

Pipe Size:	200,225,250,280,315,355,400,450
Working Voltage:	220V, 50/60HZ
Optional Size	No
Total Power	8.38KW
Voltage	220V
Working Pressure Range Bar	0-120
Total Cylinder Area	22.37cm²
Volume:	2.01CBM
STD Conformity	ISO12176-1 DVS2208-11
Warranty:	2 years

Butt Fusion Welding Machine Advantages:

Professional factory, the best quality, reasonable price and best after-sales service
We are the manufacturer, we are the source. All accessories can be supplied by ourselves.
According to the needs of customers, our designers can design special types of welding machines. And color matching according to customer requirements.
High output, timely delivery.

Butt Fusion Welding Machine Features:

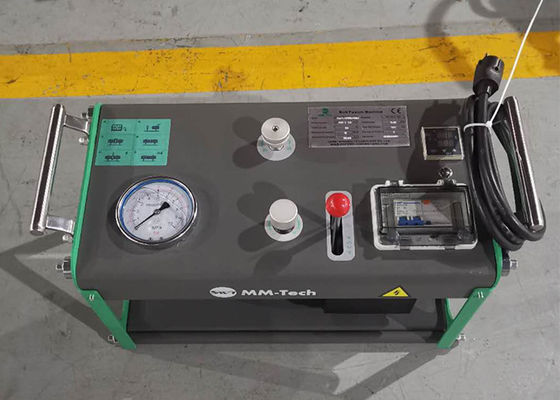

1. It consists of basic frame, hydraulic unit, planer, heating plate, planer support, heating plate and optional components.

2. Movable PTFE coated heating plate with high precision temperature control system.

3. Electric planer.

4. It is made of light weight and high strength material. It is simple in structure, small in volume and easy to use.

5. Low start-up pressure ensures reliable welding quality of small pipes.

Construction pictures:

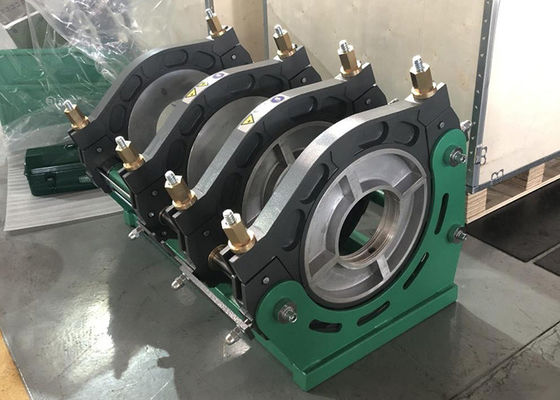

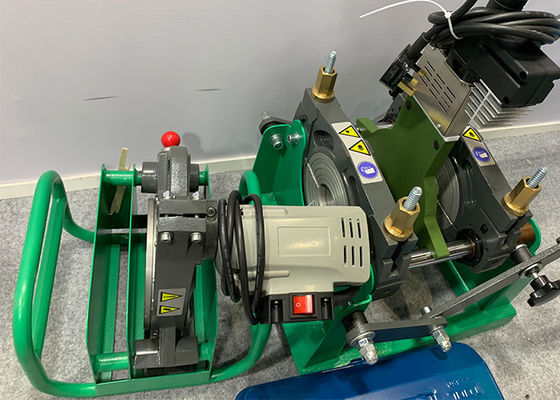

Voltage Customized Poly Fusion Welder Pe Pipe Joint Butt Fusion Machine 0

Exhibition:

Voltage Customized Poly Fusion Welder Pe Pipe Joint Butt Fusion Machine 2
