SWT-NS610A Hot Air Welder And Plastic Pipe Extrusion Welding Machine

Large Image : SWT-NS610A Hot Air Welder And Plastic Pipe Extrusion Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS610A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1850-USD2200 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Model:	SWT-NS610A	Weight:	6.5KG
Voltage:	110V/220V	Frequency:	50/60Hz
Power:	1600W	Warranty:	2 Years
Usage:	PE.PVC.PP Pipe	Extruding Power:	800W

Extrusion Welding Machine Instruction:

This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.

Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.

Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends

of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.

Extrusion Welding Machine Specification:

Voltage:	220V
Frequency:	50/60HZ
Power:	1600W Hot Air + 1350W Hitachi Motor
Wind Temperature:	20-600℃
Heating Temperature When Extrudng:	200-380℃
Extruding Volume:	2.5 kg/h
Diametere of Welding Rod:	Φ3.0mm-5.0mm
Weight:	7 kg
Usage:	PVC Tarpaulin Welding Extruder
Wedling Thickness:	1-20mm

Extrusion Welding Machine Features:

This series of welding machine is powerful with high welding speed and good welding quality.
It is available for welding PE, PVDF, PVC, PP and other hot melt materials.
It is the first one to have a digital display control, 360 degree rotating welding head,
the motor cold start protection, independent heating of welding rod and membrane material and other functions in China.

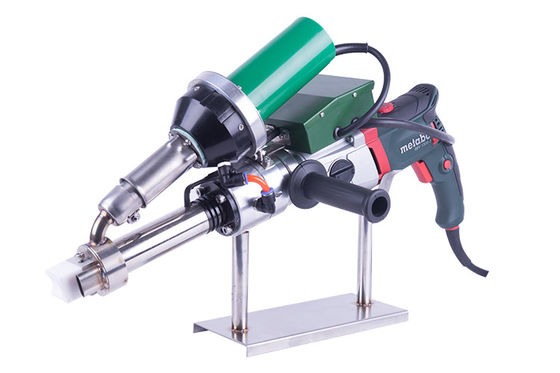

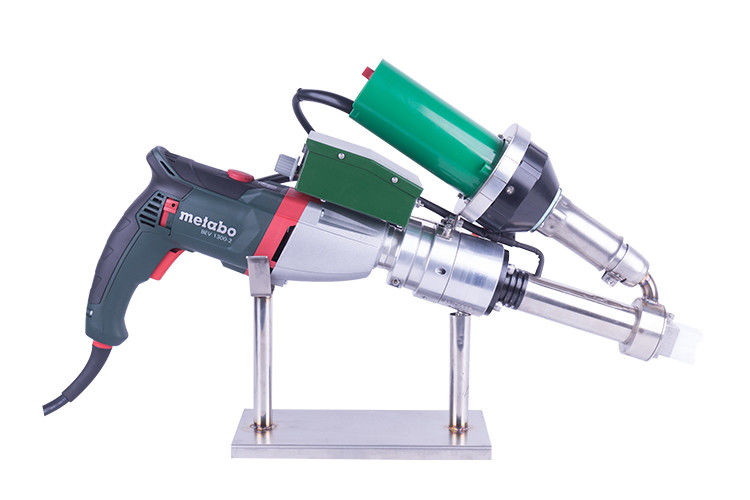

SWT-NS610A Hot Air Welder And Plastic Pipe Extrusion Welding Machine 0

Package:

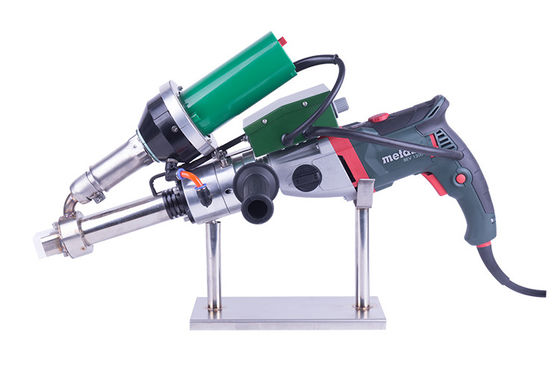

SWT-NS610A Hot Air Welder And Plastic Pipe Extrusion Welding Machine 1

After-Sales Service:

We always provide high quality products and workable price for every clients and have

won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under

normal operating, we provide them for free.
