SWT-NS600F Hot Air Plastic HDPE Pipe Extrusion Welding Machine

Large Image : SWT-NS600F Hot Air Plastic HDPE Pipe Extrusion Welding Machine

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NS600F

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD1300-USD1500 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Extrusion Welding Machine	Model:	SWT-NS600F
Welding Thickness:	1-10mm	Condition:	New
Wind Temperature:	20 - 600 Degree	Certification:	CE ISO
Voltage:	220V/110V	Weight:	13KGS/7KGS
Power:	3400W	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Free Spare Parts

Extrusion Welder Machine Instruction:

This product is with two major components,preheating raw material’s hot air part and welding rod’s extrusion part.

Hot air part with adjustable temperature controller to heat automatically,and extrusion part with independent thermostatic heating control system to send hot air independently, It is easy to adjust extrusion speed and use screw extruding for powerful extrusion pressure.

Using 220v power supply uniformly to weld plastic sheets,tube and other thermoplastic products,especially for both ends

of large diameter hollow wall pipe,producing pipe and repairing pipe and so on.

Available welding materials: thermoplastic HDPE, PP, PVDF, especially PE .

Extrusion Welder Machine Specification:

Voltage:	220V
Frequency:	50/60HZ
Hot Air Power:	3400w
Wind Temperature:	20-600℃
Heating Temperature When Extrudng:	200-380℃
Extruding Volume:	2.5kg/h
Diametere of Welding Rod:	Φ3.0mm-4.0mm
Weight:	5 kg
Usage:	PVC Tarpaulin Welding Extruder
Welding thickness:	1-10mm

Extrusion Welder Machine Features:

Imported hot air welding torch and imported driven system, high temperature, big torque, long service life, stable performance.
Light weight, easy to handle and available to operation at different angles.
Big extrusion volume can be welded more than 10mm welding seam.
Different welding shoes can be applied to different types of welding.
It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding Association).

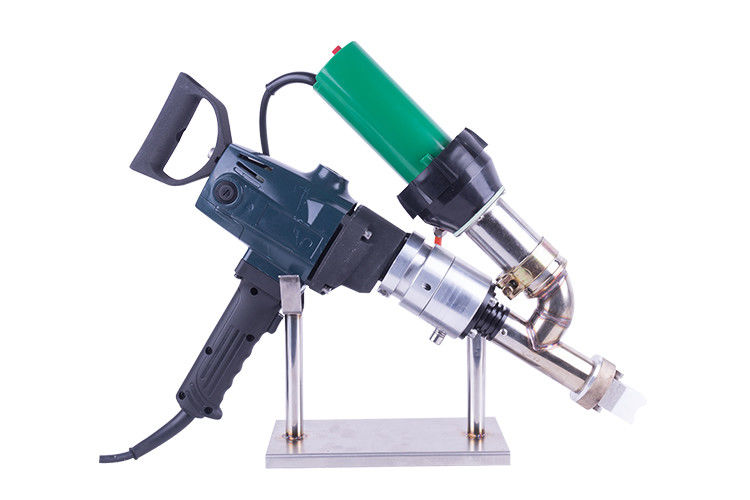

SWT-NS600F Hot Air Plastic HDPE Pipe Extrusion Welding Machine 0

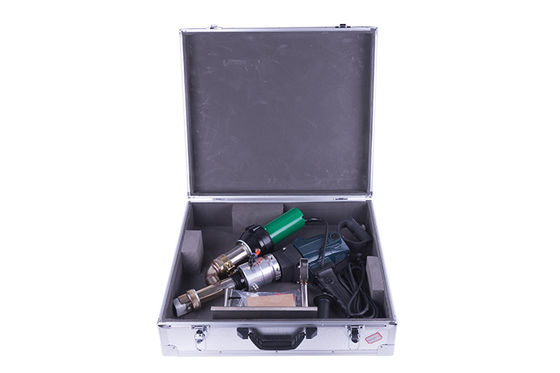

Package:

SWT-NS600F Hot Air Plastic HDPE Pipe Extrusion Welding Machine 1

After-Sales Service:

We always provide high quality products and workable price for every clients and have

won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under

normal operating, we provide them for free.
