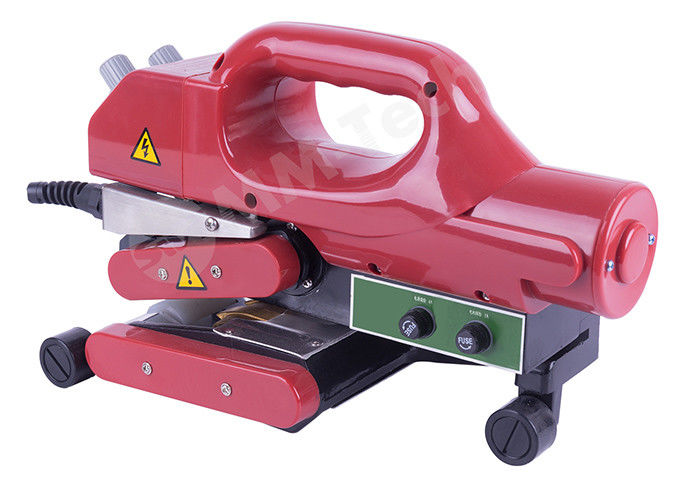

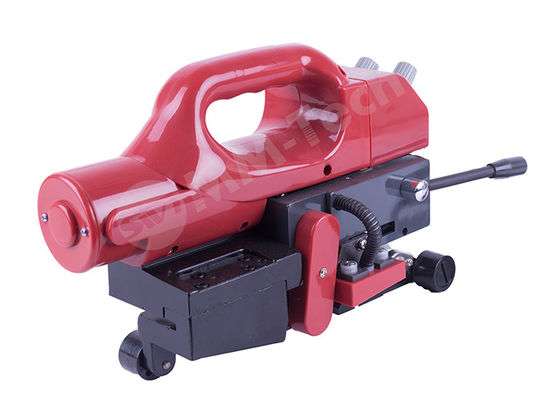

Hot Wedge Welder Introduction:
Hot Wedge Welder Model SWT-NS800 is a 5kgs light welding tool in big area plastic sheets welding jobs, suitable for 0.2-1.5mm thickness HDPE, LLDPE, LDPE, EVA,EVOH and PVC geomembrane welding.
Hot Wedge Welder Specification:
SWT-NS800 is light and economic for plastic welding works in field. the brief tech data is as following:
Power:800W
Frequency: 50hz/60hz
Heating Temperature: 0-450C
Overlap width: 100mm
Welding Strips: 12.5mmx2 + 12mm (gap)
Net weight: 5kgs
Package Weight: 9kgs
Exploded Views:
Operating regulations:
1. Use with grounded 3-cord mains cable and 3-hole socker with capacity not less than 10A (socket corresponds with welder plug,phase L connected to live wire ,N to zero line ,phase to grounded protection liner),confirm that external lines have been well connected .Check that power is on off state and regulate temperature control potentiometer and speed control potentiometer to 0 position ,press lever handle down to disengage pressure roller ,then insert the plug.
2. Turn on the power and select certain temperature and speed, take several narrow materials for try welding. Temperature selection may be different for the same material at different ambient temperature and material thickness. To determine the best welding effect, adjust the speed to approximately 2m/min, and then fine increase it from low to high temperature -approximately 250℃-350.
3. Flatly and straightly trim the weld edges and frontage faced, with lower left and upper right overlapped. The overlap width is 100mm.
4. After temperature and speed have been determined, insert material to be welded between the two pressure rollers, make machine body parallel with edges of base materials and engage press lever handle for proper motion. Generally, only observation of deviation between welding mark and base materials is needed for operator, and timely make correction on small degree.
5. When welding will be ended, timely press lever handle to disengage upper and lower pressure roller to prevent rubber wheel damage for long duration.
6. Excessive temperature high and low may occur because of thermal inertia. On this condition, temperature deviation may be compensated by speed regulation on a small degree.
CE Certification:
Sales Promotion:

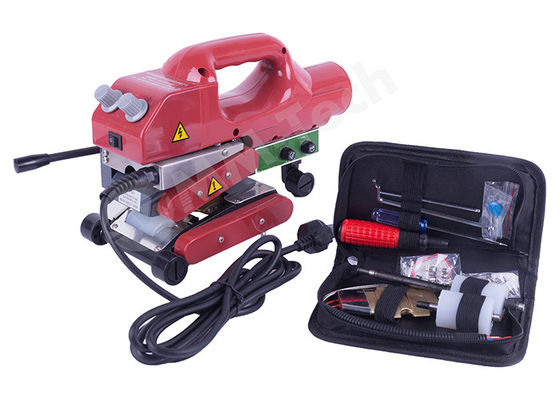

If you buy 1 set HDPE Geomembrane Welding Machine, we will send you 1 hot air gun, 1 cutter and 20 blades as gifts.
Delivery to your office by Fedex express, you will receive it about 7-10 days after your payment.
