SWT-V800/500H Transportation Pe Pipe Jointing Machine , Butt Fusion Welder

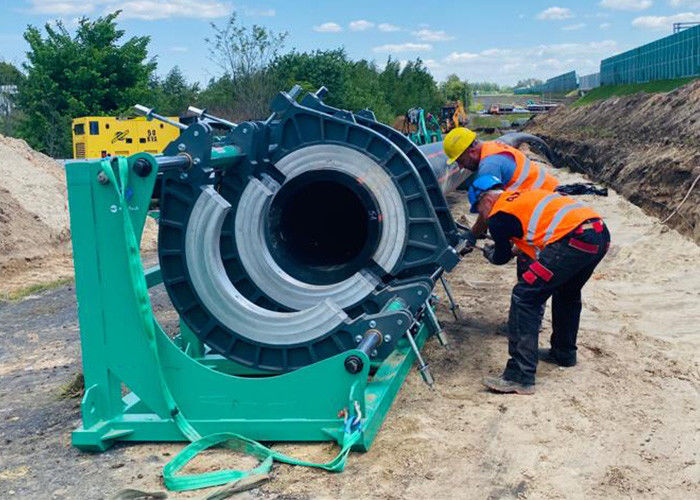

Large Image : SWT-V800/500H Transportation Pe Pipe Jointing Machine , Butt Fusion Welder

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V800/500H

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$12500-US$15500
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welder	STD Conformity:	ISO12176-1 DVS2208-11
Pipe Size:	500,560,630,710	Volume:	5.77CBM
Optional Size:	400-450	Total Power:	16.9KW
Total Cylinder Area:	44cm²	Working Pressure Range Bar:	0-160
Voltage:	220V	Support Customized:	Yes
Highlight:	Transportation Pe Pipe Jointing Machine , Transportation Butt Fusion Welder , 16.9KW Pe Pipe Jointing Machine

SWT - V800 / 500H transportation PE Pipe jointing Butt Fusion Welder

Butt Fusion Welder Description:

SWT-V800/500H butt fusion welder is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool& heating plate, and optional parts

Butt Fusion Welder Specification:

Model	SWT-V800/500H
Pipe size (mm)	500mm,560mm,630mm,710mm
Heating plate Max. temp.	270℃
Temp. deviation in surface(170-250)	≤±10℃
Max working pressure hydraulic station	0-16Mpa
Working voltage	220V
Working frequency	50-60HZ
Hydraulic Unit voltage of hydraulic station	3.0KW/220V
Powerl voltage of planning tool motor	2.2KW/220V
Power voltage of heating plate	12.5KW 220V
Total Power	16.9KW
Overall weight of machine (kg)	1287KG

Heating Plate Advantages:

1.Tefolon coated

2.Electronically controlled with direct and accurate digital display, waterproof and thermal design :IP54

3.Electronic temperature control system in handle With Stainless steel + PTFE double insulation protection

All machine components are covered by MM-Tech warranty

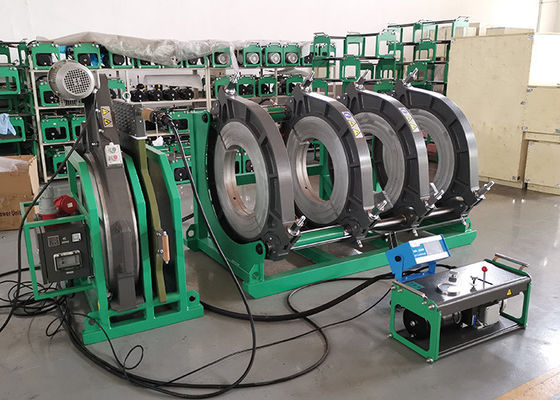

SWT-V800/500H Transportation Pe Pipe Jointing Machine , Butt Fusion Welder 0

All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

Butt Fusion Welder Application:

It is suitable for welding plastic pipes and fittings with PE, PP and PVDF in ditches of site or workshop.

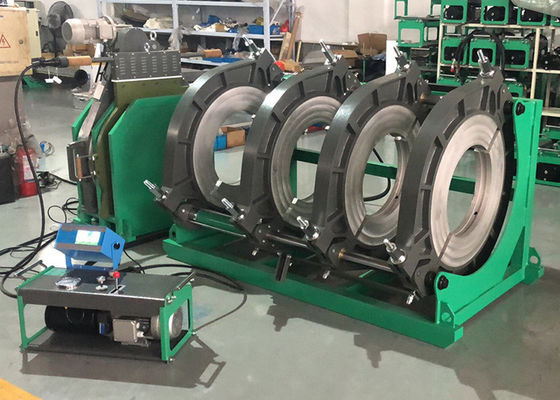

SWT-V800/500H Transportation Pe Pipe Jointing Machine , Butt Fusion Welder 1
