SWT - V1000 / 630H Construction Worksite Dedicated Butt Fusion Welder
Butt Fusion Welding Machine Description:

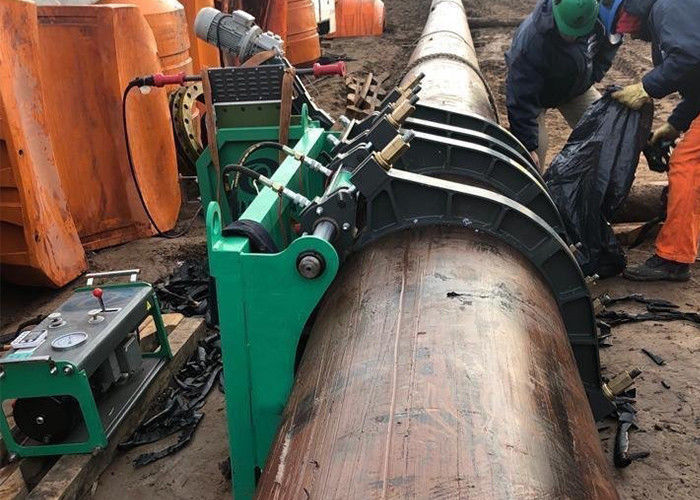

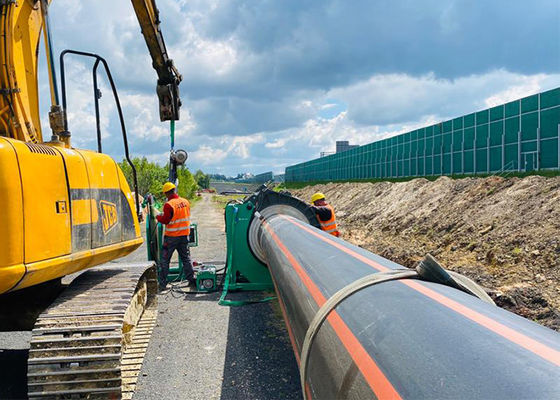

Butt Fusion Welder Suitable for butt welding of thermoplastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
Butt Fusion Welding Machine Detailed:
1.Removable PTFE coated heating plate with separate temperature control system.
2.Electrical planning tool, be made of lightweight and high strength material; simple structure, small and delicate user friendly.
3.Welding ranges: 630mm-1000mm (630,710,800,900,1000mm)
4.Range of application: PE,PP and PVDF Working voltage: ~380V ±10%,50Hz
5.Total power: 22.7kW , Planning tool:3kW, heating plate:17.5 kW
6.PTFE coated heating plate, digital temperature controller, difference in heating plate surface temperature ≤±10°, handy operation.
Environment temperature: -10° ~ 45°
Whole machine consists of basic frame, heating plate, planning tool, and support (for planning tool & heating plate
CE Certification:
Features:
| FEATURES |
| 1.Used to fusion joint PE/PP/PVDF pipes/fittings in a jobsite or workshop. |

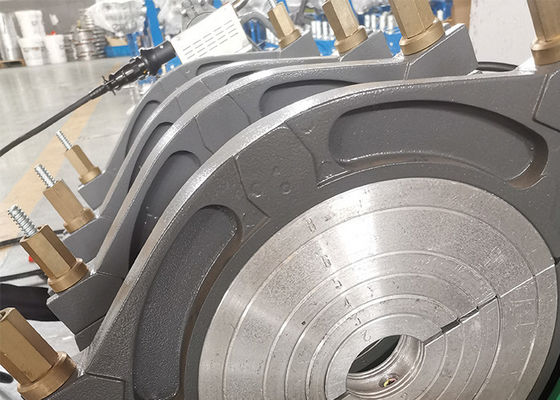

| 2.Four main clamps made of light weight alloy. |
| 3.Removable heating plate with high quality non-stick PTFE coating |
| 4.Low temperature difference in heating plate surface,within 5 degree |
| 5.Imported oil seal & hydraulic couplers |
6.A mechanical lock excludes the disengagement of the trimmer during the
operation |
All machine components are covered by MM-Tech warranty
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
