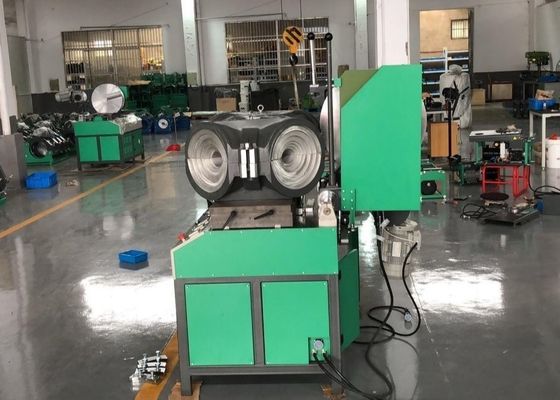

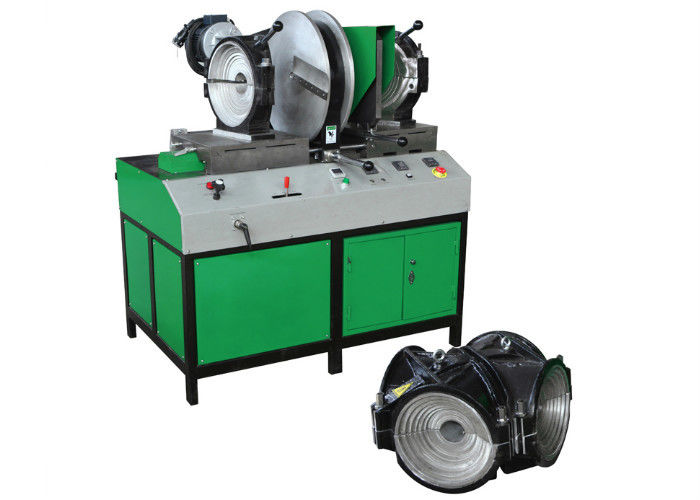

Hdpe Pipe Jointing Fabrication Welding Machine Hydraulic System Driven

SWT - MA315 / 90 Hdpe Pipe Jointing Workshop Fitting Fabrication Welding Machine For Pp Pe Pvdf Pipe

Workshop Fitting Fusion Machine Introduction:

1. A machine body with two working tables, both driven by hydraulic system;
2. A operation panel with manual control;
3. A milling cutter with gas spring, easier to lift up and down;
4. A Teflon coated heating plate with steel cover, to make operator in safe;
5. With full set of aluminum inserts and steel clamps, which make fittings elbows, tees and crosses.

Workshop Fitting Fusion Machine Specification:

Ranges of tee: 90mm-315mm

Ranges of cross: 90mm-315mm

Ranges of elbow(n×11.25°): 90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

Ranges of application:PE,PP and PVDF

Working voltage: 380V ±10%,50/60Hz

Total power:7.4 KW,

including:

planing tool motor:1.5 KW,

heating plate:5.15 KW,

hydraulic unit motor:0.75KW

Whole machine consists of four parts:

basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps

Workshop Fitting Fusion Machine Features:

1. Suitable for fabricating elbow, tee, cross and Y shape (45° and 60°)fittingsof PE PP PVDF in workshop;
2. Integrated structure. Nothing remains but to choose the differentspecial clamps while fabricating different fittings;
3. High accuracy temperature controller;
4. Difference in heating plate surface temperature ≤±5°;
5. Environment temperature:-10° ～ 45°;
6. Electronic count-down timer for heating and cooling time;
7. Removable PTFE coated heating plate.
8. Electric planing tool with safety limit switch.
9. Low starting pressure and high reliable seal structure.
10. Separate two-channel timer records time in soaking and cooling phases with alert.
11. High and accurate and shockproof pressure meter indicates clearer readings.
12. Digital pressure meter is installed on machines.
13. Reliable performance, easy control.
14. Optional parts: 45°, 60°Y Tee clamp.

Exhibition:

After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,

enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

we provide them for free!
