Drainage Workshop Welding Machine 380V 50Hz For Fitting Fabrication

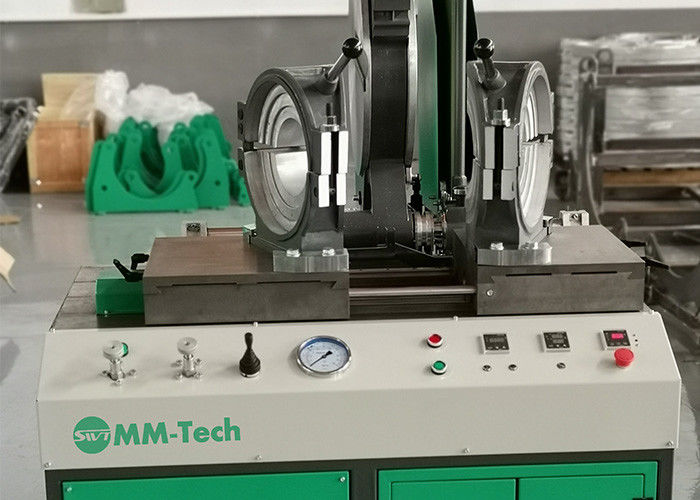

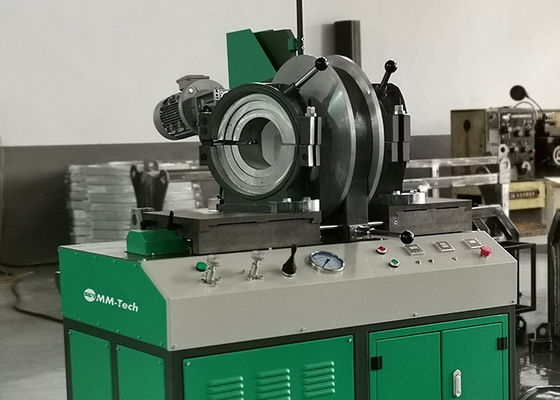

Large Image : Drainage Workshop Welding Machine 380V 50Hz For Fitting Fabrication

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	ISO,CE,
Model Number:	SWT-MA1200/710

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD149000-USD175000 per set
Packaging Details:	Plywood Case With Pallet
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Fabrication Welding Machine	Planning Tool Power:	7.5kw
Total Power:	76.4kw	Heating Plate Power:	61.4kw
Hydraulic Unit Power:	7.5kw	Warranty:	2 Years
Weight:	18000kg	Working Voltage:	380V 50Hz
Transport Package:	11 Wooden Boxes	Weld Range(mm):	710 800 900 1000 1100 1200
Highlight:	Workshop Welding Machine 380V , Workshop Welding Machine 50Hz , Drainage Workshop Welding Machine

SWT - MA1200 / 710 Drainage Workshop Welding Machine Fitting Fabrication Machine

Workshop Fitting Fusion Machine Introduction:

Suitable for fabricating Elbow,Teem,Cross,Y shape(45 and60) fittings of PE PP PVDF in workshop
Integrated structure,nothing remains but to choose the different special clamps while fabricating different fittings.
Consist of Basic Frame,Hydraulic Unit,Trimmer,Heater and Electric Control Unit.
Removable PTFE coated heating plate with separate temperature control system.
Electric unit provides welding machine with compressing power.
Hydraulic unit provides welding machine with compressing amchine
Low starting pressure ensures reliable welding quality f small pipes.
Including the Temperature Controller and Timer,easy to know the time and temperature.

Workshop Fitting Fusion Machine Specification:

Type	SWT-MA1200/710
Welding Range(mm)	710 800 900 1000 1100 1200
Application	0-90°Elbow,Tee,Cross,45°and60°wyes (optional parts should be used)
Heating Plate Max.Temp.	270ºC
Temp. Deviation in Surface(170-250ºC)	≤±7ºC
Pressure adjustable ranges	0-16Mpa
Working Voltage	380V 50Hz/60Hz
Heating Plate Power	61.4KW
Hydraulic Unit Power	7.5Kw
Planning Tool Power	7.5Kw
Total Power	76.4Kw
Volume	45.93CBM
Package	11 Wooden Box
Gross Weight	18000KG

Workshop Fitting Fusion Machine Features:

Applied to fabricate PE, PP, PVDF elbow, tee, cross fittings in workshop. Also used to lengthen the injection moulded fitting and make the integrated fittings.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
Removable PTFE coated heating plate.
Electric planing tool with safety limit swith enable to start it only when it is locked in the operation position.
Low starting pressure and high reliable seal structure.
Separate two-channel timer records times in soaking and cooling phases.
Digital pressure meter enables to control pressure accurately.
Linear guide ways are equipped with heating plate, planing tool and dragging plate.
Products comply with 98/37/EC and 73/23/EEC standards.

Drainage Workshop Welding Machine 380V 50Hz For Fitting Fabrication 0

Exhibition:

After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!
