SWT-WP1 TPO Welding Machine 4200W Automatic Advertising Roof Waterproofing Sealed

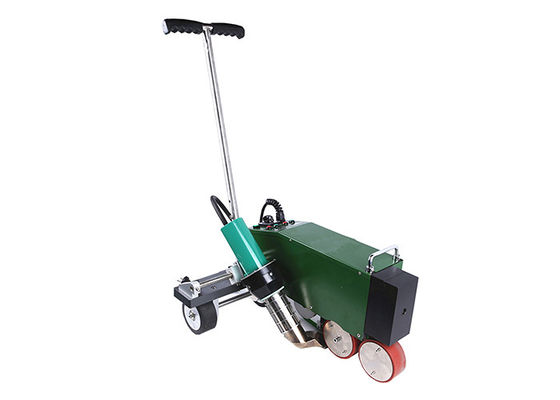

Large Image : SWT-WP1 TPO Welding Machine 4200W Automatic Advertising Roof Waterproofing Sealed

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-WP1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2500-2750/set
Packaging Details:	605400330mm stainless steel box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Hot Air Welder	Temperature:	20-620℃ Adjustable
Size:	605400330mm	Welding Speed:	1.0-10.0m/ Min
Weight:	50/37kg	Warranty:	2 Years
Power:	4200w	Welding Seam:	40mm
Certification:	CE	Welding Pressure:	200N Addible
Highlight:	TPO Welding Machine 4200W , TPO Welding Machine Waterproofing Sealed

4200W Plastic Automatic Advertising Roof Waterproofing Sealed PVC Hot Air Welder

Hot Air Welder Description:

Roof waterproofing membrane welding machine is high quality automatic hot air welding machine,it is of new design and technology.

SWT-WP1 is allowed to be sold before strict inspection.

Hot Air Welder Specification:

Voltage	230	v
Frequency	50/60	Hz
power	4200	w
Temperature	50-620	℃
Welding speed	1.0-10.0	m/min
Welding width	40	mm
Size(LWH)	555358300 38.5	mm kg
Weight	555358300 38.5	mm kg

Notice:

1. Unplug the tools before opening it to avoid of being hurt by exposed wires or component inside the machine with

power

2. Incorrect use of it can cause fire and explosion hazard because of high temperature, especially near combustible

materials and explosive gases.

3. Don’t touch heater tube and nozzle when they are hot. They may cause burns. Don’t point hot air flow in the

direction of people or animals.

4. The voltage rating stated on the welder must correspond to line/mains voltage (220V).

The drop cable / wire with protective earthed conductors can only be used.

5. To ensure operator safety and reliable operation of equipment, the power supply must be installed power supply

and leakage protection at the construction site.

6. It must be running at the correct use of manipulation of the operator, or they may cause a fire or explosion caused

by high temperature.

Exploded View:

Fault diagnosis and solved ways:

The fault performance	Caused reasons	Solved ways
Welder cannot walk when hot air nozzle at the right place	Micro switch is not in right place	Move the hot air nozzle to the left and put it in place,then loosen adjusting screw Move baffle of micro switch to place micro switch in the right position
The position between hot air nozzle and drive roller is not right		Adjust the fixed set of hot air blower (by adjusting the screw under the fixed set of hot air blower)

Service:

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

Tag:

Contact Person: Sophia Zhang

Tel: +8619931106377

Fax: 86-311-68009658
