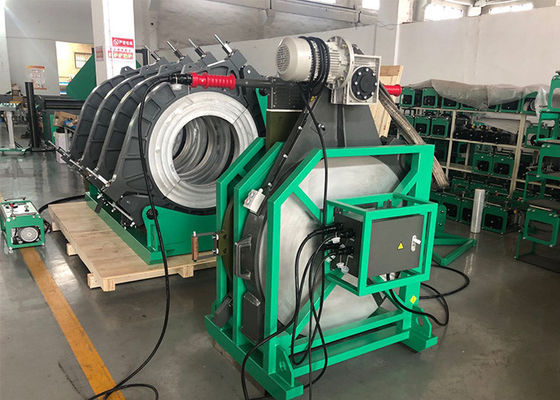

630mm 1000MM Hydraulic Butt Fusion Welding Machine Hdpe Pipe Jointing Machine

SWT - V1000 / 630H 630 - 1000MM Automatic Pipe Jointing Butt Fusion Welding Machine

Automatic Butt Fusion Welding Machine Introduction:

• The MM-TECH V-CNC series automatic hydraulic butt welding machines are applied to joint PE, PP, PPR and PVDF pipes and moulded fittings.
• Selection of components with a long service life ensures a low maintenance and repair, friendly and reliable operation.

Automatic Butt Fusion Welding Machine Specification:

Automatic Butt Fusion Welding Machine Features:

• The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm.
• Fully encased control box makes the protection level up to IP 54.
• Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control.
• And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.
• All connections sockets are located at the back of hydraulic control unit, including sockets for trimmer tool and heating plate. No additional power distributor is needed.
• Various welding standards (DVS, ISO, WIS, etc.) could be pre-installed by different languages upon your request.
• All welding reports could be saved immediately to internal memory with a capacity of 2000 reports after welding accomplished, or print the report.
• Meanwhile, it is available for downloading through the USB interface.
• All MM-TECH V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology.
• Troubleshooting and program upgrade are available for remote control.
• When heating plate hook up with machine chassis, inserting or release the heater will be
• controlled remotely by hydraulic unit, which is same as trimmer.
• These characteristics prevent the operators from being injured.

SWT-V1000A includes:

* A machine body with 4 clamps and 1 automatic console with quick connector;
* A Teflon coated heating plate with separate temperature control system;
* Self detaching device: helps removing the heating plate after soaking process;
* A electrical milling cutter;
* Hydraulic hoses with quick couplings;
* Support for milling cutter and heating plate.

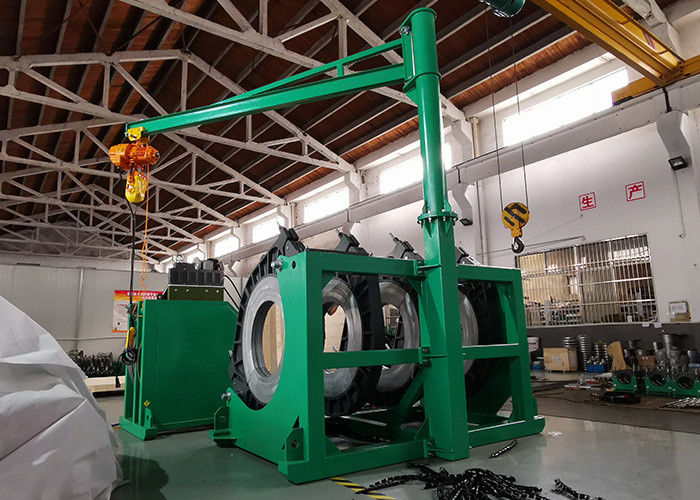

Workshop:


After-sales Service:

We always provide high quality products and workable price for every clients and have won the trust,

enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

we provide them for free!
