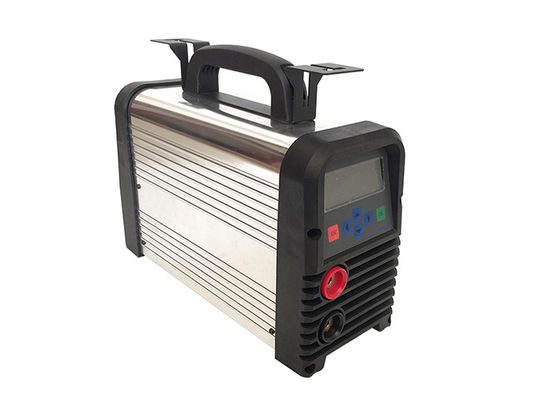

Water Pipe Dedicated Electro Fusion Welding Machine 20mm-315mm

Large Image : Water Pipe Dedicated Electro Fusion Welding Machine 20mm-315mm

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	DPS20-3.5KW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	US$950 - US$1300
Packaging Details:	1 Alloy Box and 1 Carton
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9,000 sets / months

Contact Now

Detailed Product Description

Product Name:	Electrofusion Welding Machine	Supported Languages:	English, Spanish, Russian, Polish
Welding Type:	Electrofusion Welding	Dimension:	460×270×380
Welding Size:	20 - 315 Mm	Weldable Material:	PE PP PPR
Output Power:	3.5KW	N.W:	9.5KGS
Output Current:	55A	Output Voltage:	75V
Highlight:	Dedicated Electro Fusion Welding Machine , Electro Fusion Welding Machine 20mm

20 - 315mm Gas And Water Pipe Dedicated Electro Fusion Welding Machine

Electrofusion Welding Machine Presentation:

This electro fusion welding machine using imported IGBT module and fast recovery diode as output power device, the whole
machine has the characteristics of small size, light weight, energy saving and so on.

Electrofusion Welding Machine Specification:

Welding range	Input Voltage	Frequency	Ambient Temperature
20-315mm	3.5KW	50/60HZ	-20-50℃

Construction Site:

Water Pipe Dedicated Electro Fusion Welding Machine 20mm-315mm 0

Features:

1.Designed according to ISO9001:2008 electro-fusion welder international standard.

2.High level MCU is used as control core,equipped with LCD display, all welding parameters could be displayed.

Light weight ,easy operation.

3.By real-time monitoring weld status, abnormal welding process could be terminated in short time.

4.Built-in memory, can record more than500 welding records.

5.Welding records could be download to USB flash disk via the USB interface (optional function).

6.Welding wiring os easy and simple to avoid wiring error.

7.Welding parametets input modes:(1) Manually set ; (2) Read in by bar code scanner.

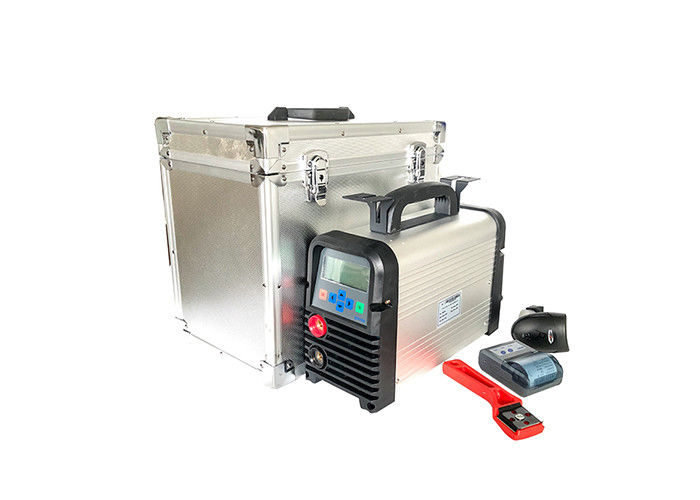

Package:

Water Pipe Dedicated Electro Fusion Welding Machine 20mm-315mm 1

Service:

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
