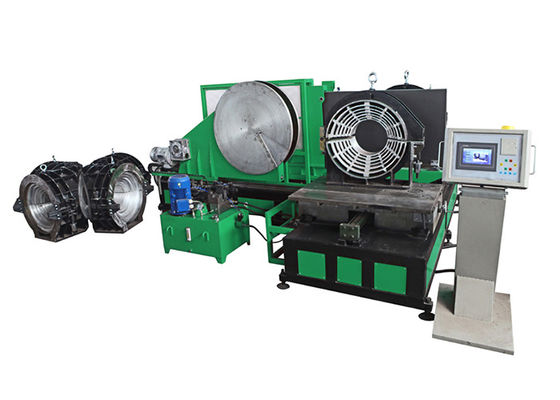

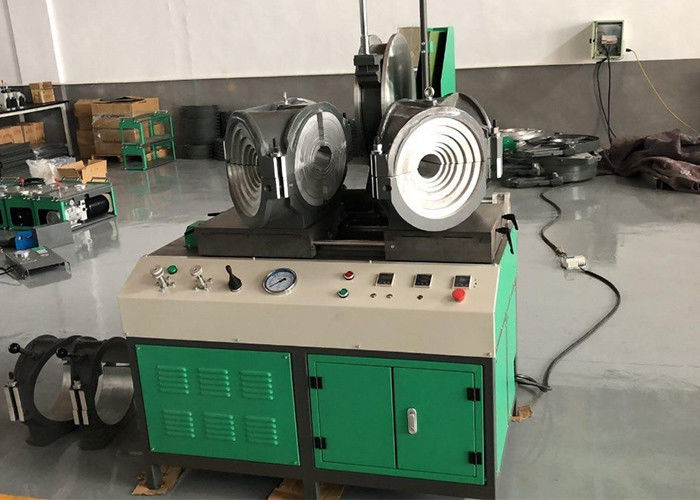

SWT - MA315 Workshop Fittings Welding Machine Fabricating 90-315mm PE PiPE
Workshop Fitting Fusion Machine Introduction:
1 Workshop plastic fitting welding Machine
2 fabricating PE PP PVDF fittings
3 Pipe size: 90~315mm
4 elbow, cross, tee,
Workshop Fitting Fusion Machine Specification:
| Model |
SWT-MA315 |
| Pipe sizes(mm) |
90,110,125,140,160,180, |
| 200,225,250,280&315mm |
| Heating plate max.temp. |
270°C |
| Temp.deviation in surface(170-270°C) |
<±5°C |
| Pressure adjustable ranges |
0-6Mpa |
| Working voltage |
380V,50HZ |
| Heating plate power |
5KW |
| Hydraulic unit power |
1.5KW |
| Planing tool power |
0.75KW |
| Total power |
7.25KW |
Available options:
Wyes clamps φ450(45°and 60°): inserts from 200mm to 450mm
Clamps for welding flange necks
Imperial inserts
Hydraulic open/close elbows clamp
Hydraulic open/close tees and crosses clamp
Hydraulic locking
Sofa Factory:
Advantages:
1.Quick, efficient and professional response within 24 hours.
2.15 years manufacturing experience in plastic pipe&fitting field.
3.Reasonable price and shoter production cycle.
4.Technical support and solution by chief engineer.
5.Strict quality control system and team
6.Full range of pipe&fitting products for choice
7.OEM or ODM services both availiable for our company
8.Accept sample order before mass order
9.On-time delivery,and 24 hour after-sales service
Service:
Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
