Geomembrane Extrusion Plastic Welder , Double Heating Plastic Welder Gun

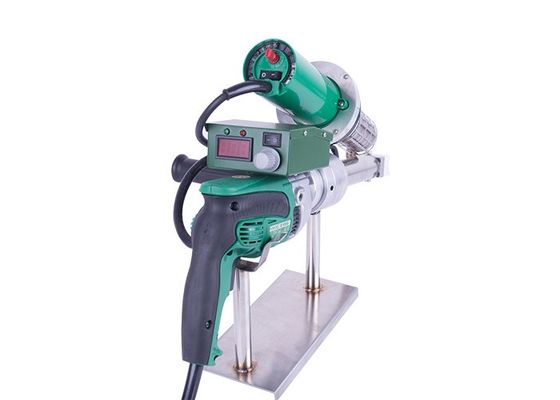

Large Image : Geomembrane Extrusion Plastic Welder , Double Heating Plastic Welder Gun

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-NS600B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500-1700/set
Packaging Details:	Aluminium alloy Box
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10 sets / day

Contact Now

Detailed Product Description

Product Name:	Extrusion Welder	Application:	Repair Cracks And Etc
Welding Rod Diameter:	3.0-4.0mm	Motor:	HITACHI
Welding Thickness:	8-40mm	Welding Speed:	2.0kg/h
Warranty:	2 Years	Power:	3400w
Color:	Green	Certification:	CE
Highlight:	Geomembrane Extrusion Plastic Welder , Geomembrane Plastic Welder Gun , 3400w Extrusion Plastic Welder

HDPE Geomembrane Extrusion Plastic Welder With Double Heating For Pipe

Extrusion Plastic Welder Description:

This extrusion welding machine is suitable for 3 or 4mm welding rods. It adopts a single-stage heating system and is suitable for difficult welding environments. It can weld PE, PP, PVC and other materials.

Extrusion Welder Specifications:

Heating	double heating/welding rod
working voltage	220V 50/60HZ
Temp.deviation in surface(170-250℃)	<±5℃
Option	Digital Display Heating Plate
Air temp	20-600℃ Adjustable
Extruding Temperature	200-380 ℃ Adjustable
Driving Motor	HITACHI METABO
N.Weight	6kg
G.Weight	7kg
Extruding Volume	2kg/h
Hot air power	1.6kw
welding rod heating power	0.8kw
Extruding Motor power	0.8kw

The parts of the complete machine:

Each set includes: machine + fillet welding shoe + overlap welding shoe + heating element + disassembly tools + operation manual + aluminum box + carton

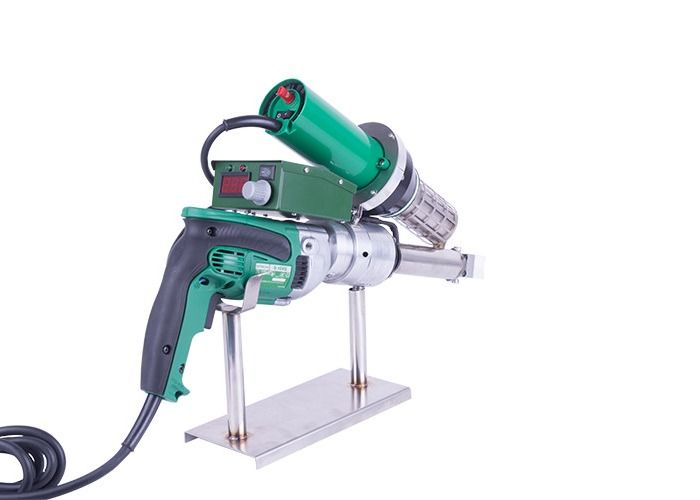

Geomembrane Extrusion Plastic Welder , Double Heating Plastic Welder Gun 0

Product Features:

1) Imported hot air welding torch and imported driven system, high temperature, big torque, long

service life, stable performance.

2) Light weight, easy to handle and available to operation at different angles.

3) Big extrusion volume can be welded more than 10mm welding seam.

4) Different welding shoes can be applied to different types of welding.

5) It is used in the tank and pipe and is comply with Part 4 of the DVS standard (Germany Welding

Association)

Extrusion Welder Application:

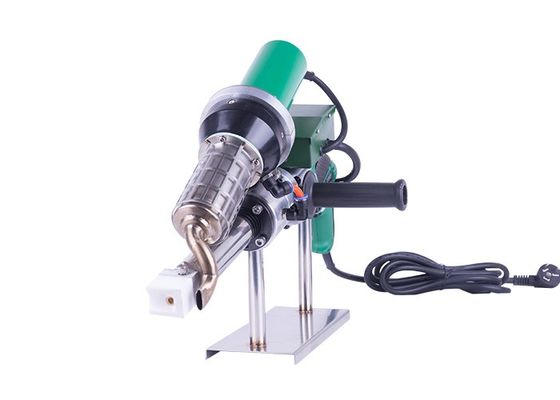

Geomembrane Extrusion Plastic Welder , Double Heating Plastic Welder Gun 1
