2'' 8'' Hydraulic Fusion Welding Machine For Hdpe Pipe CE Certificated

Large Image : 2'' 8'' Hydraulic Fusion Welding Machine For Hdpe Pipe CE Certificated

Product Details:

Place of Origin:	CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V250/63H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 2,700 - 3,200 / SET

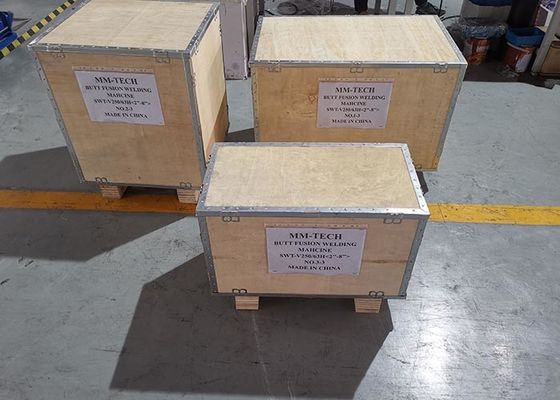

Packaging Details:	3 Plywood Cases
Delivery Time:	Within 7 days
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	9,000 SETS / PER MONTH

Contact Now

Detailed Product Description

Brand:	MM-TECH	Model:	SWT-V250/63H
Voltage(Up To):	240V	Voltage(from):	220V
Frequency:	50Hz	Rated Power:	4.25kW
Country Of Orgin:	CN	Product Weight:	137KG
Diameter Working Range(up To):	8''	Diameter Working Range(from):	2''
Highlight:	2'' Hydraulic Fusion Welding Machine , 8'' Hydraulic Fusion Welding Machine , Fusion Welding Machine For Hdpe Pipe

HDPE Pipe 2'' - 8'' Inches Hydraulic Butt Fusion Welding Machine

Product Profile

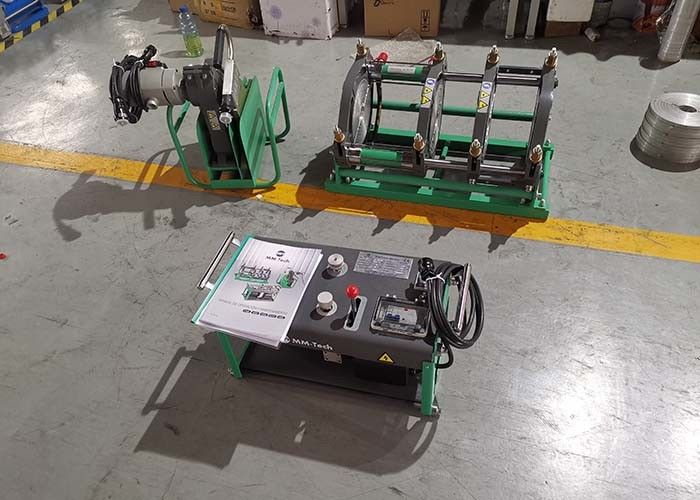

The control panel centralized in the hydraulic unit enables operators to set welding parameter and execute welding procedure conveniently.
All connections sockets are located at the back of hydraulic unit, including sockets for trimmer tool and heating plate.
Additional USB charging port is ready for charging your cellphone when power off.
All MM-TECH butt welding machine can easily be upgraded with MM-TECH data logger for welding parameter setting, viewing, monitoring and recording.
With steel side wall and high strength connection bars, the machine chassis could be prevented from being tilt or twist wgeb dragging very long length pipes with most extreme pipe parameters.
Specifically anti-stick Telfon coated heating plate enbles the machine to work in precise way.
PTFE mat adopted with more helps in heat insulation, bother characteristics prevent installer from being injured by heat.

Technical Specifications

Brand	MM-TECH
Model	SWT-V250/63H
Voltage(up to)	240V
Voltage(from)	220V
Frequency	50Hz
Rated Power	4.25kW
Country of origin	CN
Product Weight	137KG
Diameter working range(up to)	8''
Diameter working range(from)	2''
