Thermofusion Hydraulic Butt Fusion Welding Machine

Thermofusion Hydraulic Butt Fusion Welding Machine
Thermofusion Hydraulic Butt Fusion Welding Machine Thermofusion Hydraulic Butt Fusion Welding Machine

Large Image :  Thermofusion Hydraulic Butt Fusion Welding Machine

Product Details:

Place of Origin: Hebei,China
Brand Name: MM-TECH
Certification: CE,ISO
Model Number: SWT-V630/315H

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD6800-8000 per set
Packaging Details: Plywood Case With Pallet
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per week
Detailed Product Description
Product Name: Butt Fusion Welding Machine Working Range: 315-630
Power Supply: 220/380V Total Absorbed Power: 12.3KW
Warranty: 2 Years Weight: 780KG
Usage: Plastic Welding After-sales Service Provided: Online Support,Video Technical Support
Condition: New Frequency: 50HZ/60HZ
Weld Able Material: PE,PP,PPR,PVDF Type: Welding Equipment,HDPE Pipes Butt Fusion Welding Machine,Hydraulic
Highlight:

Thermofusion Hydraulic Butt Fusion Welding Machine

,

Thermofusion Butt Fusion Welding Machine



Thermofusion Welding Machine Introduction:



MM-Tech V series is on-site hydraulic butt fusion welding machine. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps` drag bar. It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF and other thermoplastics material.



Thermofusion Welding Machine Specification:



Welding Range 315mm-630mm
Reducing Inserts 315mm-355mm-400mm-450mm-500mm-560mm-630mm
Ranges of Application PE,PP and PVDF
Working Voltage 380V±10%,50/60Hz
Total Power 12.3KW
Heating Plate 9.5KW
Planning Tool 1.5KW
Hydraulic Unit Motor 1.5KW
Environment Temperature -10°~45°



Pipe Jointing Butt Fusion Machine Features:

  1. Removable PTFE coated heating plate with high accurate temperature control system;
  2. Electrical planning tool with safety limit switch to avoid starting unexpectedly.(optional)
  3. Be made of lightweight and high strength material; Specially designed with a clamp opening angle of 45°
  4. Low starting pressure ensures reliable welding quality of small pipes.
  5. Changeable welding position enables to weld various fittings more easily.
  6. Separate two-channel timer shows time in soaking and cooling phases. Give a alarm when timing over.
  7. High-accurate and shockproof pressure meter indicates clearer readings.
  8. Digital pressure meter is installed on machines.

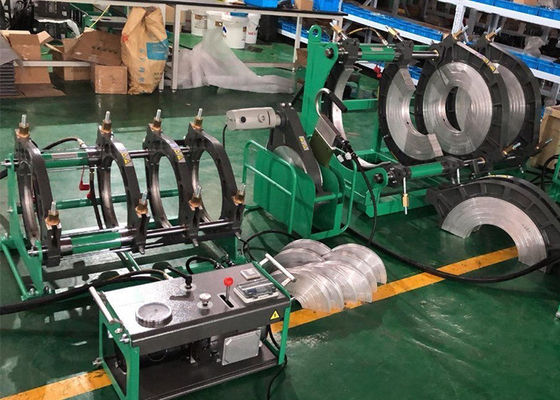

Thermofusion Hydraulic Butt Fusion Welding Machine 0



SWT-V630H includes:

  1. A machine body with 4 clamps and 2 hydraulic cylinders with fast couplings;
  2. A Teflon coated heating plate with separate temperature control system;
  3. Self detaching device: helps removing the heating plate after soaking process;
  4. A electrical milling cutter;
  5. Hydraulic hoses with quick couplings;
  6. Support for milling cutter and heating plate.

Pipe Jointing Butt Fusion Machine Application:



Using for welding HDPE pipe.

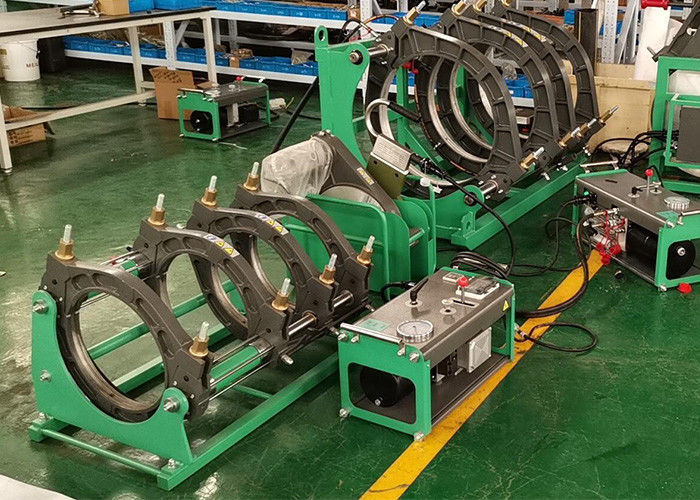

Thermofusion Hydraulic Butt Fusion Welding Machine 1

After-sales Service:



We always provide high quality products and workable price for every clients and have won the trust,

enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

we provide them for free!
