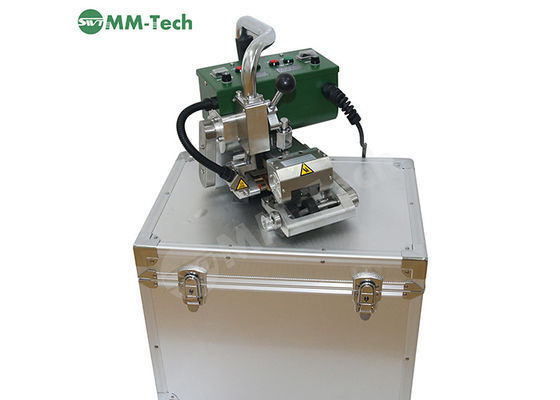

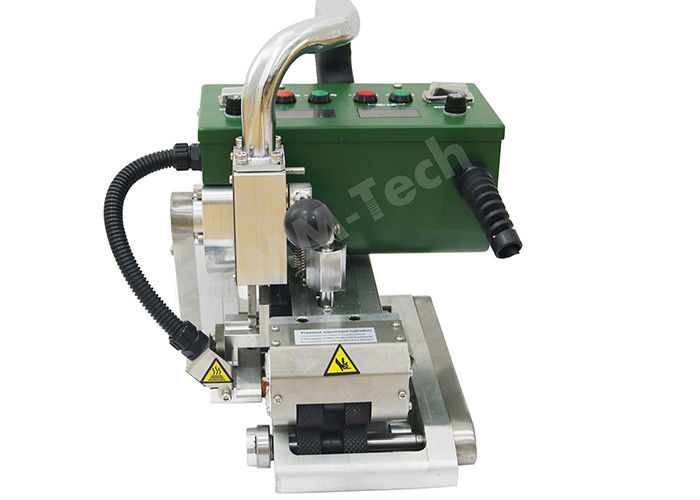

Geomembrane Fish Pond Liner Welding Machine , 220V Hot Wedge Welder

Large Image : Geomembrane Fish Pond Liner Welding Machine , 220V Hot Wedge Welder

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-TECH
Certification:	CE,ISO
Model Number:	SWT-NSGM1

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD2200-USD2600 per set
Packaging Details:	Aluminum Alloy Box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per week

Contact Now

Detailed Product Description

Product Name:	Geomembrane Welding Machine	Usage:	Geomembrane Welding
Voltage:	220V	Weight:	13kg
Power:	1200W	Warranty:	24 Month
Material:	PP,HDPE,PVC	Welding Width:	120 Mm
Temperture:	0-450 Degree	Welding Speed:	0.5-8M Adjustable
Highlight:	220V Hot Wedge Welder , Geomembrane Pond Liner Welding Machine

SWT-NSGM1 Electric Geomembrane Fish Pond Liner Welding Machine Hot Wedge Welder

Hot Wedge Welder Instruction:

It adopts advanced hot air heating system.

With small,high speed,it perfects the welding quality even if corrosive material and bad working evironment.

This machine is specially designed for tunnelssubway,waterconservancy,aquaculture,biogas plants,landfills,chemcial mining.sewage treatment,roff construction and other waterproffing projects.

Hot Wedge Welder Specification:

MODEL	SWT-NSGM1
INPUT VOLTAGE	220V/110V,50/60HZ
POWER	1200W
OVERLAP WIDTH	12CM
WELDING SPEED	0.5-8m/min
TEMPERATURE	20-450℃ ADJUSTABLE
SAEM WIDTH	15MM*2 INTERIOR CAVITY 15MM
WELDING THICKNESS	0.2-2.0MM

Hot Wedge Welder Features:

1.Contorl System:Advanced intelligent digital control system which temperature and speed readed on LCD screen.2.Pressure
Adjustment System:advanced"T"jib design and pressure regulation structure.
3.Pressure Roller:special stainless steel pressure roller with strong pressure force.
4.Hot Air Heating System:advanced hot air heating system perfects the welding quality even if corrosive material and bad working
environments.

Geomembrane Fish Pond Liner Welding Machine , 220V Hot Wedge Welder 0

Exhibition:

Geomembrane Fish Pond Liner Welding Machine , 220V Hot Wedge Welder 1

After-Sales Service:

We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free.
