Digital Thermofusion Socket Fusion Welding Machine For Ppr Pipe 20mm-63mm

Digital Thermofusion Socket Fusion Welding Machine For Ppr Pipe 20mm-63mm
Digital Thermofusion Socket Fusion Welding Machine For Ppr Pipe 20mm-63mm

Large Image :  Digital Thermofusion Socket Fusion Welding Machine For Ppr Pipe 20mm-63mm

Product Details:
Place of Origin: China
Brand Name: MM-Tech
Certification: CE
Model Number: ZRJQ-63
Payment & Shipping Terms:
Minimum Order Quantity: 100 set
Price: $63-$68 /set
Packaging Details: 440*270*270 mm
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, D/P
Supply Ability: 100 sets / per week
Detailed Product Description
Product Name: Socket Fusion Welding Machine Welding Size: 20-25-32-40-50-63
Suit Material: PP-R/PE/PB Etc Dimension: 440*270*270
Voltage: 220V/110V Frequency: 50Hz/60Hz
Warranty: 2 Years Power: 800W
Working Temperature: 260℃ Digital Display: Yes
Highlight:

Thermofusion Socket Fusion Welding Machine

,

Digital Thermofusion Socket Fusion Welding

,

Fusion Welding Machine For Ppr Pipe



ZRJQ-63 20 - 63MM Digital Thermofusion material Socket Fusion Welder



Socket Fusion Welder Presentation:



Digital series of ZRJQ models add a digital controller and screen for improving the accuracy of the heating temperature. The temperature range can set as demand of different plastic pipes & fittings, required fusing temperature can fix and display on the screen, environment temperature will be adjusted and updated automatically, over-temperature will be alarmed automatically and etc. This provides a more excellent fusing result.



Socket Fusion Welder Specification:



Rated Voltage: 110V/220V
Rated Frequency: 50/60Hz
Rated Power: 800w
Working Temp: 260C
Temp.Tolerance: s2°℃
Warning Temp: SetTemperature + 30°C
Environment Temperature: -5°C-45°℃
Working Range mm: 20,25,32,40,50,63
Suit Material : PP-R
Net Weight(Set): 7.96KGS
Packing: 1PC/Poly Bag , 2PCSICTN
RubberCable: VDE standard 131.5meter
OEM Available
N.WICartons: 15.62KGS
G.WICartons: 16.62KGS
Cartons Size: 47.0X27.0x26.OCM



Socket Fusion Welding Machine Advantages:



1.Using algorithm PID Microcontroller.temperature controlsystem can react fasterto the externaltemperature fluctuations.

2. Independent research and development automatic testing lineto insure the temperature tolerances2oc.



3. There is circuit board research and development departmentin our factory.

4. Sockets with Japanese Daikin PTFE coating. forlonger lifetime and great fusion effect.



5.In case the intelligent control device failure, thereisthe warning temperature.The warning temperatureis based on setting temperature plus30c.(For example, ifyour setting temperature is 260 degree,the warning temperature is 290 degree.

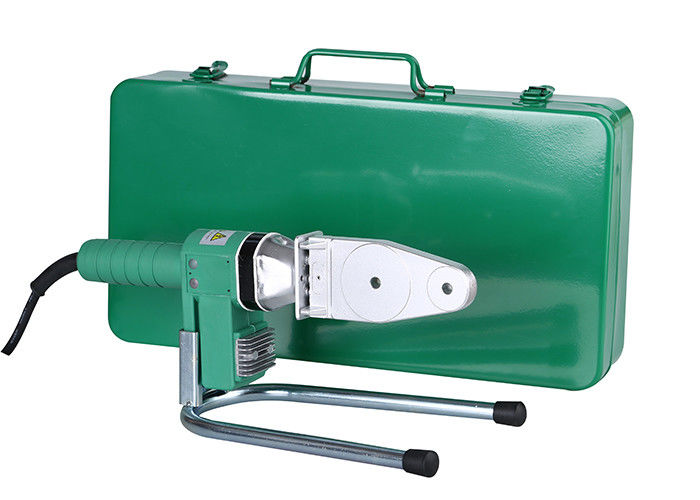

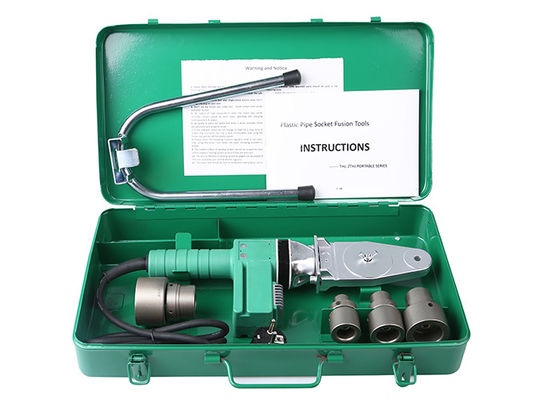

Picture And Real Product:



Digital Thermofusion Socket Fusion Welding Machine For Ppr Pipe 20mm-63mm 0



Service:



Provide OEM products, the first choice of European customers!!

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.





Company Profile:



Hebei Mingmai Technology Co.,LTD (MM-Tech) isone of comprehensive manufacturer of Thermoplastic Welding Equipment and anexperienced professional exporters in China.Our main products:butt fusion machine.socket fusion machine,electrofusion machine,hot air welders,hot air welding machine, extrusion welders,geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.
