4.25Kw Automatic Hydraulic CE Fusion Welding Equipment

Large Image : 4.25Kw Automatic Hydraulic CE Fusion Welding Equipment

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V8H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 2700-3450/ set
Packaging Details:	3 Plywood Cases
Delivery Time:	7 - 10 days
Payment Terms:	Western Union, T/T, PayPal
Supply Ability:	20 sets/week

Contact Now

Detailed Product Description

Product Name:	SWT-V8H	Reducer Inserts Imperial IPS / DIPS *:	3'',4'',(5'')*6'',8''
Overall N.W/G.W:	137kg/163kg	Frequency:	50Hz/60Hz
Piston Area:	10.99cm²	Rated Power:	4.25Kw
Warranty:	2 Years	Color:	Green
Origin:	China	Power Supply:	230V
Highlight:	CE Fusion Welding Equipment , 4.25Kw Fusion Welding Equipment , Fusion Welding Equipment Automatic

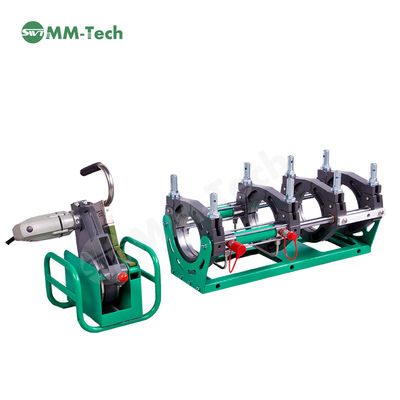

SWT - V8H Automatic Hydraulic Plastic Pipe Butt Fusion Welder With CE Certification

Butt Fusion Welder Introduction:

1. This machine adopts the principle of hydraulic automatic butt fusion
2. This machine is suitable for PE, PP, PPR and PVDF connecting pipes and molded fittings
3. This machine reduces the cost of maintenance and repair through long-life components
4. Have simple and reliable operation

Butt Fusion Welder Specification:

Welding Range:	(75)*90-250mm
Reducer inserts:	(75)*,90,110,125,140,160,180,200,225mm
Reducer inserts imperial IPS / DIPS *	3'',4'',(5'')*,6'',8‘’
Voltage:	230V
Frequency:	50/60Hz
Thickness of material:	3.0
Overlap width:	6.27
N.W/G.W	110kg/140kg
Color:	Green
Warranty:	2 years
Certification:	CE

Butt Fusion Welder Workshop:

Butt Fusion Welder CNC Series Charateristics:

1. Welding Control System: Fully monitored by CNC control unit

2. Data Logging Capacity: 2000 reports

3. Welding Monitoring System: Ambient temperature, input voltage, heating temperature,welding pressure, welding times,heating operation, trimming operation, memory control

4. Welding Standard: DVS, ISO, WIS, UNI and others upon request

5. Languages: Available upon request

6. Approval Certification: CE, ISO9001:2008

7. Warranty Period: 2 years

Exhibition:

4.25Kw Automatic Hydraulic CE Fusion Welding Equipment 1
