12'' - 24'' PP Hydraulic Butt Fusion Machine For Pipe Welding

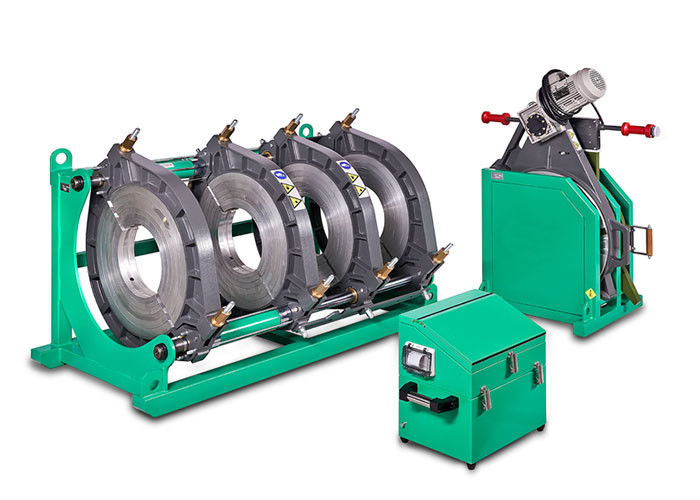

Large Image : 12'' - 24'' PP Hydraulic Butt Fusion Machine For Pipe Welding

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V630/315A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 6,700 - 40,000 / SET
Packaging Details:	3 Plywood Cases
Delivery Time:	7 - 11 days
Payment Terms:	T/T, Western Union, PayPal, Credit Card
Supply Ability:	500 SETS per month

Contact Now

Detailed Product Description

Welding Range:

12'' - 24''

Power Supply:

400V, 50/60Hz

Rated Power:

11.5KW

Piston Area:

23.06CM²

Highlight:

PP Hydraulic Butt Fusion Machine

12" Hydraulic Butt Fusion Machine

pp pipe fusion welding machine

Product Profile ×

12'' - 24'' PP Butt Fusion Welding Machine Automatic Type

1. The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from 12'' through 24''. Fully encased control box makes the protection level up to IP 54.

2. All connections sockets are located at the back of hydraulic control unit, including sockets for trimmer tool and heating plate. No additional power distributor is needed.

3. Various welding standards (DVS, ISO, WIS, etc.) could be pre-installed by difffferent languages upon your request. All welding reports could be saved immediately to internal memory with a capacity of 2000 reports after welding accomplished, or print the report. Meanwhile, it is available for downloading through the USB interface.

Specifications ×

Model	SWT-V630/315A
Weldig Range	12'' - 24''
Power Supply	400V, 50/60Hz
Rated Power	11.5KW
Piston Area	23.06CM²
N.W./G.W.	608KG/719KG

Application ×

12'' - 24'' PP Hydraulic Butt Fusion Machine For Pipe Welding 1

For Connecting PP Pipes for Water Supply System

Our Customer ×

12'' - 24'' PP Hydraulic Butt Fusion Machine For Pipe Welding 2

Visitor(Left) at our booth picture with Mr. David(Right)

Tag:

Contact Person: Emily Yang

Tel: +8618332261861

Fax: 86-311-68009658
