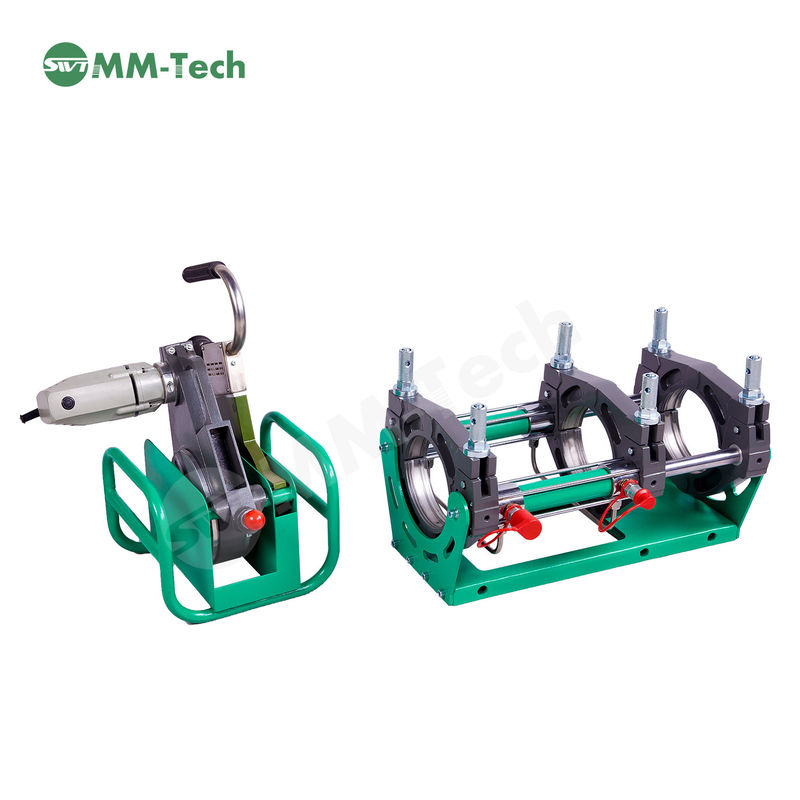

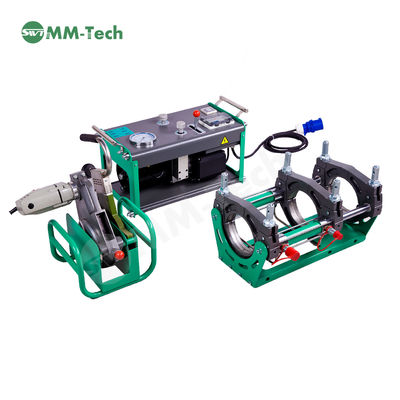

SWT - V10H Customiazed Voltage Hydraulic Butt Fusion Welder For 10 Inch PVDF Pipes
Butt Fusion Welder Introduction:
1. This machine adopts the principle of hydraulic automatic butt fusion
2. This machine is suitable for PE, PP, PPR and PVDF connecting pipes and molded fittings
3. This machine reduces the cost of maintenance and repair through long-life components
4. Have simple and reliable operation
Butt Fusion Welder Specification:
| Machine Type: |
SWT-V10H |
SWT-V14H |
| Welding Range: |
90-315mm |
90-355mm |
Reducer inserts
imperial IPS / DIPS * |
3'',4'',(5'')*,6'',8'',10'' |
3'',4'',(5'')*,6'',8''10'',12'',14'' |
| Voltage: |
230V |
230V |
| Frequency: |
50/60Hz |
50/60Hz |
| Thickness of material: |
5.25 |
5.25 |
| Overlap width: |
20.02 |
20.02 |
| N.W/G.W |
189kg/234kg |
208kg/256kg |
| Color: |
Green |
Green |
Butt Fusion Welder CNC Series Charateristics:
1. Welding Control System: Fully monitored by CNC control unit
2. Data Logging Capacity: 2000 reports
3. Welding Monitoring System: Ambient temperature, input voltage, heating temperature,welding pressure, welding times,heating operation, trimming operation, memory control
4. Welding Standard: DVS, ISO, WIS, UNI and others upon request
5. Languages: Available upon request
6. Approval Certification: CE, ISO9001:2008
7. Warranty Period: 2 years
Butt Fusion Welder Application:
Features of the core component heating plate:
1. Teflon-coated
2. Electronically controlled with direct and accurate digital display
3. Waterproof and thermal design :IP54
4. system in handle With Stainless steel + PTFE double insulation protection
CE Certification:
