230v Polythene 5.25Kw Plastic Fusion Welding Equipment

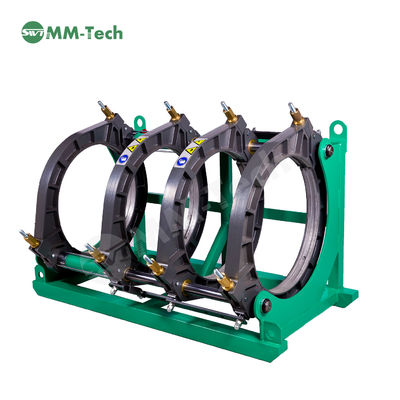

Large Image : 230v Polythene 5.25Kw Plastic Fusion Welding Equipment

Product Details:

Place of Origin:	HEBEI, CHINA
Brand Name:	MM-TECH
Certification:	CE
Model Number:	SWT-V14H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 3350-3950/ set
Packaging Details:	3 Plywood Cases
Delivery Time:	7 - 10 days
Payment Terms:	Western Union, T/T, PayPal
Supply Ability:	20 sets/week

Contact Now

Detailed Product Description

Product Name:	SWT-V14H	Reducer Inserts Imperial IPS / DIPS *:	3'',4'',(5'')*6'',8''10'',12'',14''
Overall N.W/G.W:	208kg/256kg	Frequency:	50Hz/60Hz
Piston Area:	20.02cm²	Rated Power:	5.25Kw
Warranty:	2 Years	Color:	Green
Origin:	China	Power Supply:	230V
Highlight:	230V plastic fusion welding equipment , 5.25Kw plastic fusion welding equipment , polythene fusion welding equipment

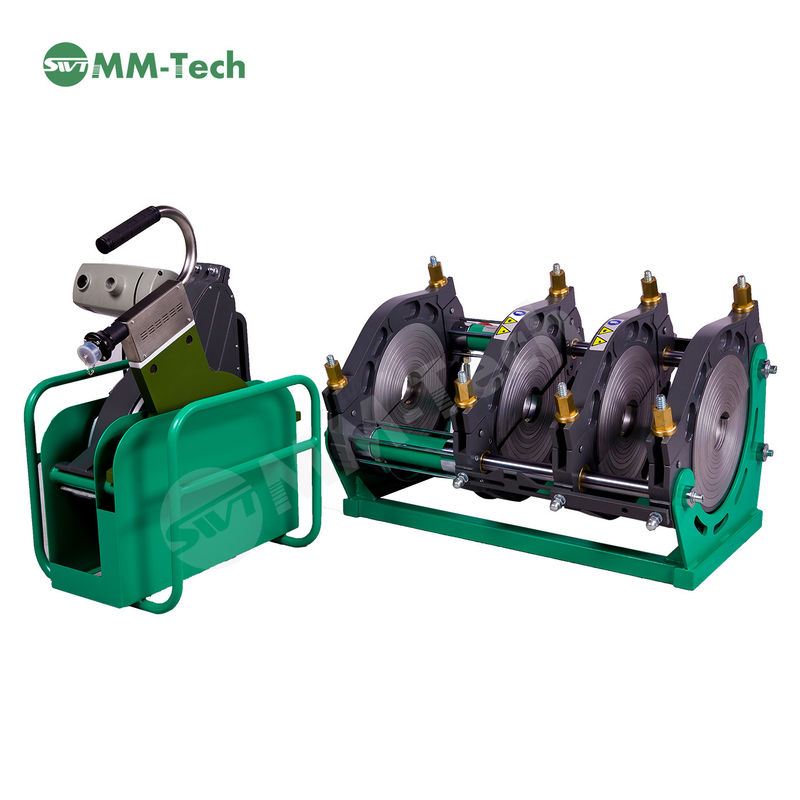

SWT - V14H 230V Polythene Material Hydraulic Pipe Butt Fusion Plastic Welders

Butt Fusion Welder Introduction:

This machine is designed for butt welding of pipe-to-pipe and pipe-to-fitting of PE PP PVDF and other thermo-plastic materials.It can work in trenches,worksite and workshop,and it is an ideal joining equipment for water and gas supply pipelines.

Butt Fusion Welder Specification:

Machine Type:	SWT-V10H	SWT-V14H
Welding Range:	90-315mm	90-355mm
Reducer inserts imperial IPS / DIPS *	3'',4'',(5'')*,6'',8‘’	3'',4'',(5'')*,6'',8''10'',12'',14''
Voltage:	230V
Frequency:	50/60Hz
Rated Power:	5.25kw
Piston Area	20.02cm²
N.W/G.W	189kg/234kg	208kg/256kg
Color:	Green

All machine components are covered by MM-Tech Warranty:

230v Polythene 5.25Kw Plastic Fusion Welding Equipment 0

Features Of The Core Component Heating Plate:

1. Teflon-coated

2. Electronically controlled with direct and accurate digital display

3. Waterproof and thermal design :IP54

4. system in handle With Stainless steel + PTFE double insulation protection

Butt Fusion Welder Application:

230v Polythene 5.25Kw Plastic Fusion Welding Equipment 1

Butt Fusion Welder Services:

We always provide high quality products and workable price for every clients and have won the trust,

enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,

we provide them for free!
