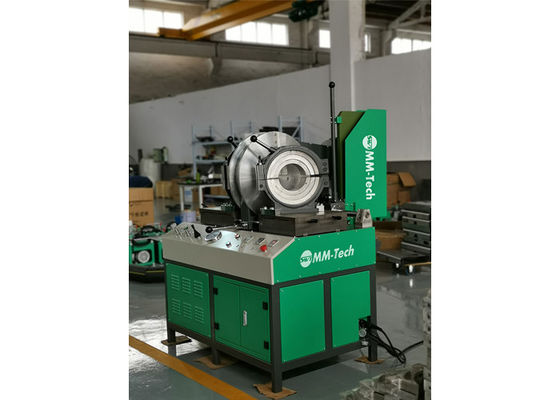

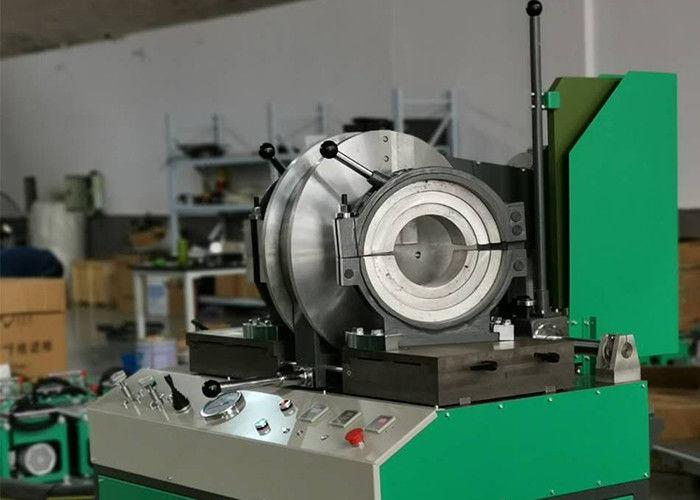

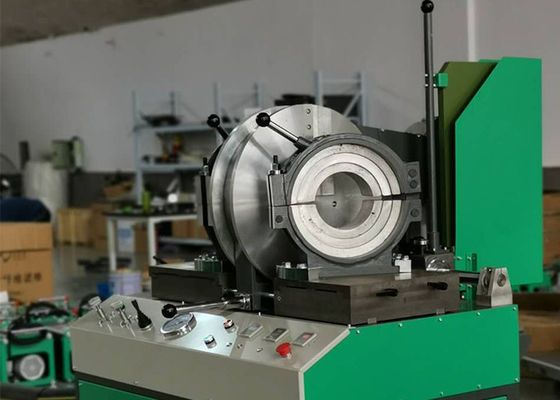

630mm Pe Pp Pipe Workshop Fitting Fabrication Welding Machine

Large Image : 630mm Pe Pp Pipe Workshop Fitting Fabrication Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	ISO,CE,
Model Number:	SWT-MA630/315

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$41200-$53110 per set
Packaging Details:	Plywood Case With Pallet
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union,
Supply Ability:	100 sets per week

Contact Now

Detailed Product Description

Product Name:	Workshop Fitting Welding Machine	Pipe Sizes:	315,355,400,450,500,560,630
Working Voltage:	380V ±10%,50/60Hz	Packing Cases:	4 Plywood Cases
Heating Plate Max. Temp:	270 Degree	Total Power:	22.25KW
Volume:	22.7CBM	Weight:	3510kg
Pressure Adjustable Ranges:	0-0.14MPa
Highlight:	630mm Fabrication Welding Machine , pe Fabrication Welding Machine , pp Fabrication Welding Machine

China Supply 630mm PE PP Pipe Workshop Fitting Welding Machine

Workshop Fitting Machine Introduction:

SWT-MA630/315 workshop fitting welding machine is suitable for fabricating PE PP HDPE reducing tee in a workshop.Integrated function of wdlding and taping enables to complete the whole fabricating process.

Workshop Fitting Machine Specification:

Model	SWT-MA630/315
Elbow	OD315-630mm
Tee	OD315-630mm
Crosses	OD315-630mm
Wyes	OD315-630mm
Welding Material	HDPE-PP-PVDF
Voltage	380V±10%,50/60Hz
Total Power	7.5KW

Workshop Fitting Machine Welding Range:

Main pipe Branch pipe	315	355	400	450	500	560	630
90	√	√
110	√	√	√	√
160		√	√	√	√	√
200			√	√	√	√	√
225				v	√	√	√
250					√	v	√
315							√

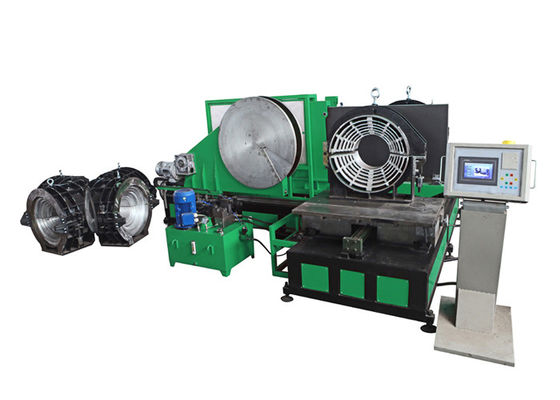

Workshop Fitting Machine Products:

630mm Pe Pp Pipe Workshop Fitting Fabrication Welding Machine 0

Workshop Fitting Machine Uses And Features:

1. Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.

2. CNC automatic workshop fitting machine equipped with PLC and touch screen.

3. Hydraulic open/close clamp system available to improve ergonomic.

4. Extension for data collection and transmission system.

5. Extension for remote fault analysis.

6. Extension for company MES management system.

Exhibition:

630mm Pe Pp Pipe Workshop Fitting Fabrication Welding Machine 1

Service:

Standard:Approved by ISO9001, CE,SGS,ROSH,EMC standard
Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.
