2.3kw Pvdf Hdpe Butt Fusion Welding Machine CE Certification

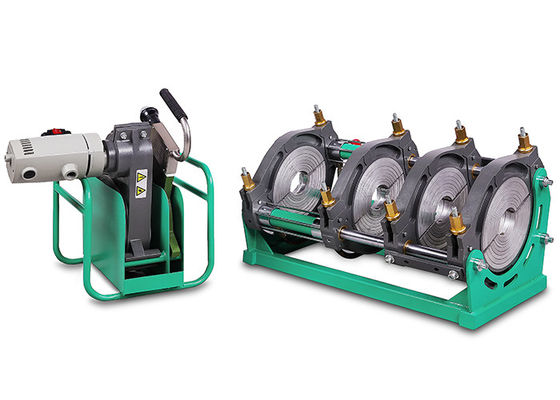

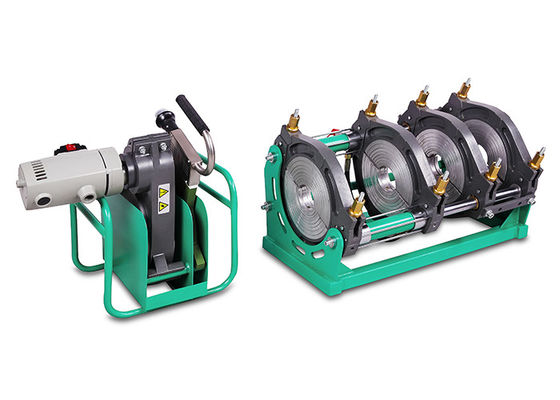

Large Image : 2.3kw Pvdf Hdpe Butt Fusion Welding Machine CE Certification

Product Details:

Place of Origin:	Hebei,China
Brand Name:	MM-Tech
Certification:	CE,ISO
Model Number:	SWT-V200/50MS

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$1200-US$1600
Packaging Details:	Plywood Case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Welding Fusion Machine Thermofusion Welding Machine	Input Voltage:	110V/220V
Type:	Manual	Pipe Size:	50-200mm
Frequency:	50Hz	Power:	2.3kw
Condition:	New	Warranty:	2 Years
Usage:	Welding Pe,Pp,Pvdf,Pvc Pipe	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Highlight:	2.3kw hdpe butt fusion welding machine , ce hdpe butt fusion welding machine , pvdf fusion pipe welder

DVS2207 SWT-V200 / 50MS Pipes Thermofusion Manual Butt Fusion Welding Machine Thermofusion Welder

Manual Butt Fusion Welding Machine Introduction:

Manually OperatedHDPE butt fusion welding machine is suitable for PE and PP pipes and fittings.High quality design and construction provides an excellent machine for weldingboth on the worksite and in the factory.
The use of high quality Aluminumcasting allows for lower weight without compromising strength and performance.
Materials :Aluminum alloy casting, 45# steel
Materials can be welded PE PP PB PVDF HDPE PVC
We have our own overseas warehouse and a professional Customer Service Team to reply you within 24 hours. If you have any Questions, please feel free to contact us. We promise you that we will do our ultmost to solve it for you firstly!

Manual Butt Fusion Welding Machine Specification:

Technical Parameters	SWT-V200/50MS
Welding Range O.D.	50,63-75-90-110-125-140-160-180-200 mm
Power Supply	(110V*) 220V, 50/60Hz
Rated Power	1.8 kw
Temperature Range	Max. 300ºC
Packing dimension	550480420 mm
Packing dimension	480420570 mm
Gross Weight	95 kgs

Manual Butt Fusion Welding Machine Application and Features:

Suitable for welding of plastic pipes and / or fittings made of PE, PP, and PVDF can be operated in any complex work condition.
Consists of basic frame, planing tool, heating plate and support for planing tool and heating plate.
Removable PTFE coated heating plate with separate temperature control system
Electric planing tool.
Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.

SWT-V200MS includes:

*A machine body with 2 aluminum made clamps;
*A Teflon coated heating plate with digital display, equipped with friendly handler;
*A electrical milling cutter;
*Support for milling cutter and heating plate.

Workshop:

FAQ:

Q1: Are you manufacturer or trading company?

A: We are Manufacturer with more than 10 years foreign trade experience. We have our own factory.

Q2: Can you produce based on our drawing & sample? We may also need our logo on it.

A: Yes, of course. We do OEM & ODM services. And definitely you can have logo on it.

Q3: What is the delivery time for bulk production?

A: About 30 days.

Q4: What about payment?

A: Usually we may ask for 30% T/T deposit and 70% T/T balance at the sight of B/L copy.

Q5: How do you control quality?

A: Under management of ISO9001 system, we check every process of production.
