200-450mm 7 Clamps Hydraulic Hdpe Pipe Butt Fusion Welding Machine

Large Image : 200-450mm 7 Clamps Hydraulic Hdpe Pipe Butt Fusion Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	MM-Tech
Certification:	CE
Model Number:	SWT-V450/200H

Payment & Shipping Terms:

Minimum Order Quantity:	10 Sets
Price:	US$4800-US$5200
Packaging Details:	Plywood Case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	1000 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Butt Fusion Welding Machine	Pipe Size:	200,225,250,280,315,355,400
STD Conformity:	ISO12176-1 DVS2208-11	Total Power:	8.38 KW
Volume:	2.01CBM	Total Cylinder Area:	22.37cm²
Voltage:	220V	Working Pressure Range Bar:	0-120
Support Customized:	Yes	Optional Size:	No
Highlight:	hydraulic hdpe pipe butt fusion welding machine , 200mm hdpe pipe butt fusion welding machine , 450mm hdpe pipe butt fusion welding machine

200 - 450mm 7 Clamps HDPE PIPE Hydraulic Butt Fusion Welding Machine

Butt Fusion Welding Machine Description:

It is used for butt welding pipes and accessories such as elbow, tees,
wye and flange necks without any additional equipment simply by adjusting the drawbar of the clamps.
It is suitable for welding plastic pipes and fittings made of HDPE, PP, PVDF.

Butt Fusion Welding Machine Specification:

Pipe Size:	200,225,250,280,315,355,400,450
Working Voltage:	220V, 50/60HZ
Optional Size	No
Total Power	8.38KW
Voltage	220V
Working Pressure Range Bar	0-120
Total Cylinder Area	22.37cm²
Volume:	2.01CBM
STD Conformity	ISO12176-1 DVS2208-11
Warranty:	2 years

Butt Fusion Welding Machine Advantages:

Related complete sets of equipment:
Application: The hdpe fusion machines can be used for welding pipes which are made of HDPE, PP, PP-R, PVDF materials and etc. Also the HDPE pipe butt fusion machine can be used both on site and inside. And the pipe diameters ranging from 200mm to 450mm.

Butt Fusion Welding Machine Primary Competitive Advantages:

Reputation	International Approvals
Service	Military Specifications
Small Orders Acdepted	Packaging
Origin	Price
Distributorships Offered	Product Features
Experienced Staff	Product Performance
Green Product	Prompt Delivery
Guarantee / Warranty	Quality Approvals

Factory Display:

200-450mm 7 Clamps Hydraulic Hdpe Pipe Butt Fusion Welding Machine 0

Features:

Pre-programmed welding parameters.
Easy to use control panel.
Teflon coated heater plate which guarantees high quality fusion of pipes and ease of cleaning.
Easily Interchangeable inserts to allow welding of multiple pipe sizes.
Compact and rugged design allowing for steady welding.

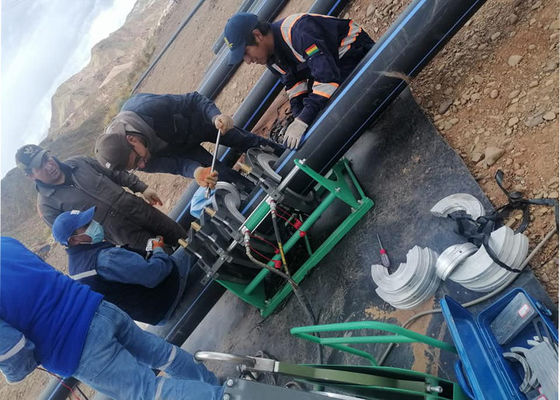

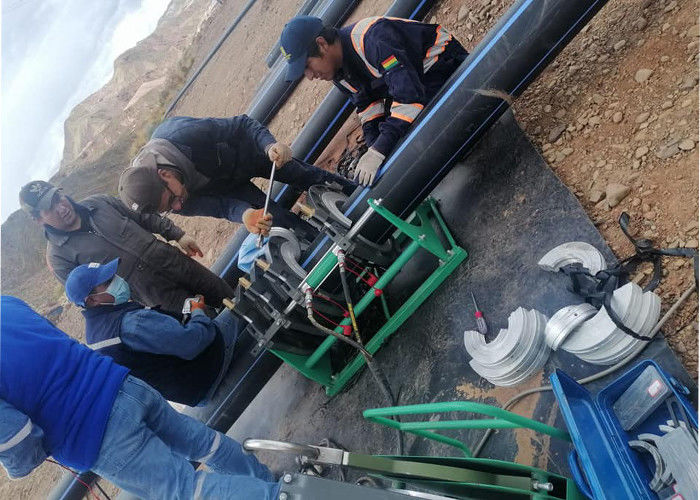

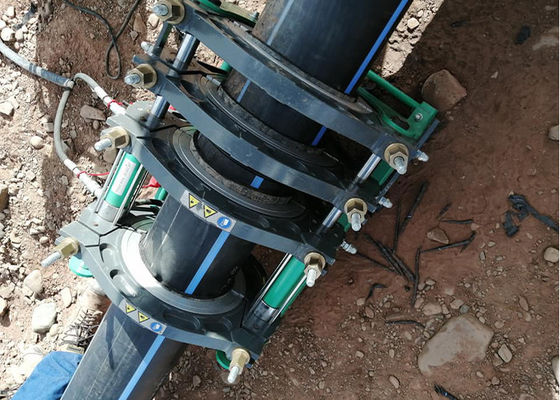

Construction pictures:

200-450mm 7 Clamps Hydraulic Hdpe Pipe Butt Fusion Welding Machine 1
