Plastic Tube 63 To 200mm Hdpe Fusion Welding Machine Hydraulic

SWT-V200/63H Includes:

*A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
*A Teflon coated heating plate with separate temperature control system;
*A electrical milling cutter;
*Hydraulic hoses with quick couplings;
*Support for milling cutter and heating plate.

Application and Features:

※ Applicable to connect the PE, PP, PVDF pipe;
※ By frame, hydraulic station, electric control of milling cutter and the bracket of the heating plate;
※ System with real-time welding data record and print functions, and can be derived via USB data;
※ System with DVS2207-1 welding standard, and support custom Settings;
※ The standard single chip fixture, the pipeline to enhance accuracy

Butt Fusion Welding Machine Strength:

1.Electric milling cutter, safety limit switch, prevent milling cutter from accidentally starting.

2.Frame main part is aluminum alloy material ,45°tilt design.

3.Low start pressure, high reliability sealing structure.

4.Welding position can be changed to facilitate the welding of various pipe fittings.

5.Independent dual-channel timer, can record heat absorption and cooling two time periods, timing end alarm, convenient for users.

6.Large dial, high precision shockproof pressure gauge, more clear reading.

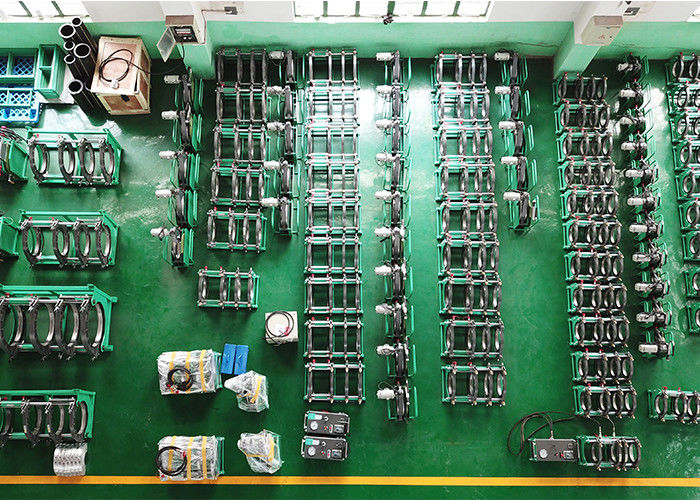

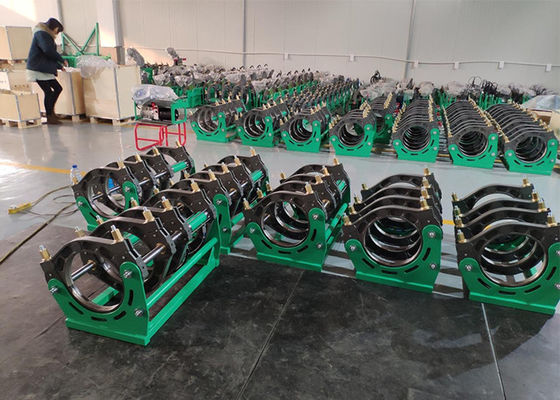

Construction picture:
